Newcastle Swing Bridge


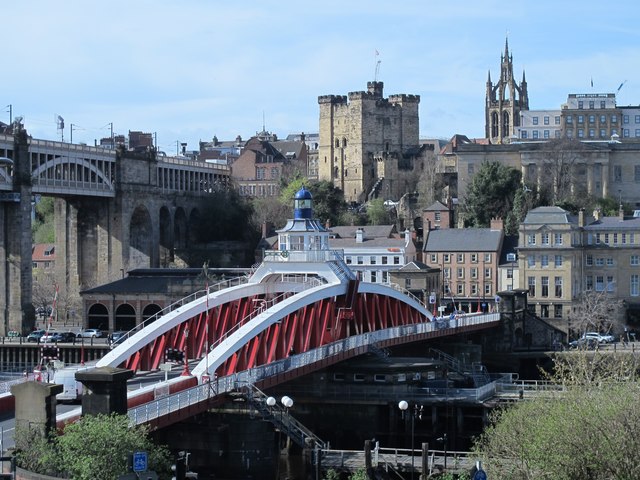

Swing BridgeThe Swing Bridge over the River Tyne was first used for road traffic on 15th June 1876 and opened for river traffic on 17th July 1876. It had an innovative design, using hydraulic power to swing open and close. At the time of construction, it was the largest swing bridge ever built. The previous bridge on the site was demolished in 1868 so that larger ships could sail upstream to William Armstrong's Elswick works. Armstrong designed and paid for the bridge. The Swing Bridge stands on the site of the Medieval Tyne Bridge of 1270 and the later bridge of 1781, and probably of the Roman Pons Aelius.

The Swing Bridge is a swing bridge over the River Tyne, England, connecting Newcastle upon Tyne and Gateshead, and lies between the Tyne Bridge and the High Level Bridge.

The hydraulic power still used to move the bridge is today derived from electrically driven pumps. These feed a hydraulic accumulator sunk into a shaft below the bridge; the water is then released under pressure which runs the machinery to turn the bridge. The mechanism used for this is still the same machinery originally installed by Armstrong.

It has an cantilevered span with a central axis of rotation able to move through 360° to allow vessels to pass on either side of it.

The previous bridge on the site was demolished in 1868 to enable larger ships to move upstream to William Armstrong's works. The hydraulic Swing Bridge was designed and paid for by Armstrong, with work beginning in 1873. It was first used for road traffic on 15 June 1876 and opened for river traffic on 17 July 1876. At the time of construction it was the largest swing bridge ever built. The construction costs were £240,000.

The Swing Bridge stands on the site of the Old Tyne Bridges of 1270 and 1781, and probably of the Roman Pons Aelius. It is a Grade II* listed structure.

Text from Wikipedia, available under the Creative Commons Attribution-ShareAlike License (accessed: 16/04/2016).
Visit the page: Swing Bridge, River Tyne for references and further details. You can contribute to this article on Wikipedia.
Bridges of the Quayside Gateshead Quays 1876 River Tyne Newcastle City Centre Historic Buildings and Monuments in Gateshead Bridges Grade II* Listed Newcastle Quayside (area) Old Toll House, Swing Bridge, Newcastle Historic Buildings and Monuments in Newcastle Lord William Armstrong (1810-1900)
from Newcastle libraries (flickr)

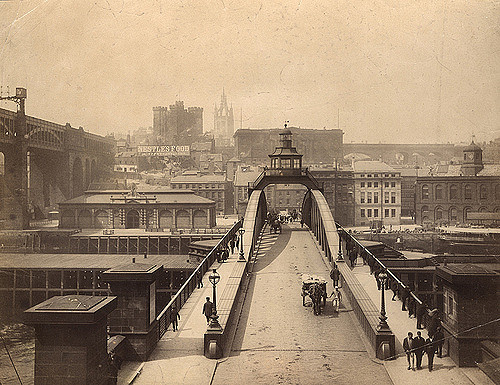

063186:Swing Bridge Newcastle upon Tyne c.1875

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
003382:Swing Bridge, Newcastle upon Tyne, 1889

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
044108:Swing Bridge Newcastle upon Tyne unknown 1904

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
666797b:View of Newcastle upon Tyne from the High Level Bridge Unknown c.1910

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
715655:Swing Bridge Newcastle upon Tyne Unknown Undated

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
069408:Swing Bridge Newcastle upon Tyne Unknown Undated

Pinned by Simon Cotterill
from Newcastle libraries (flickr)

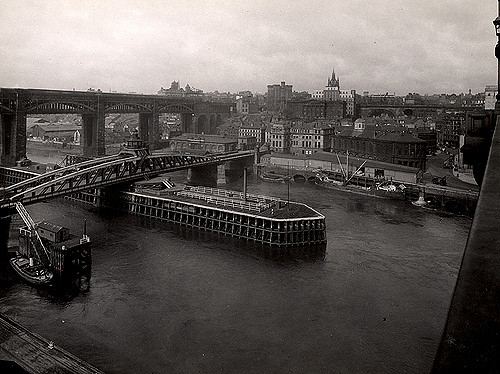

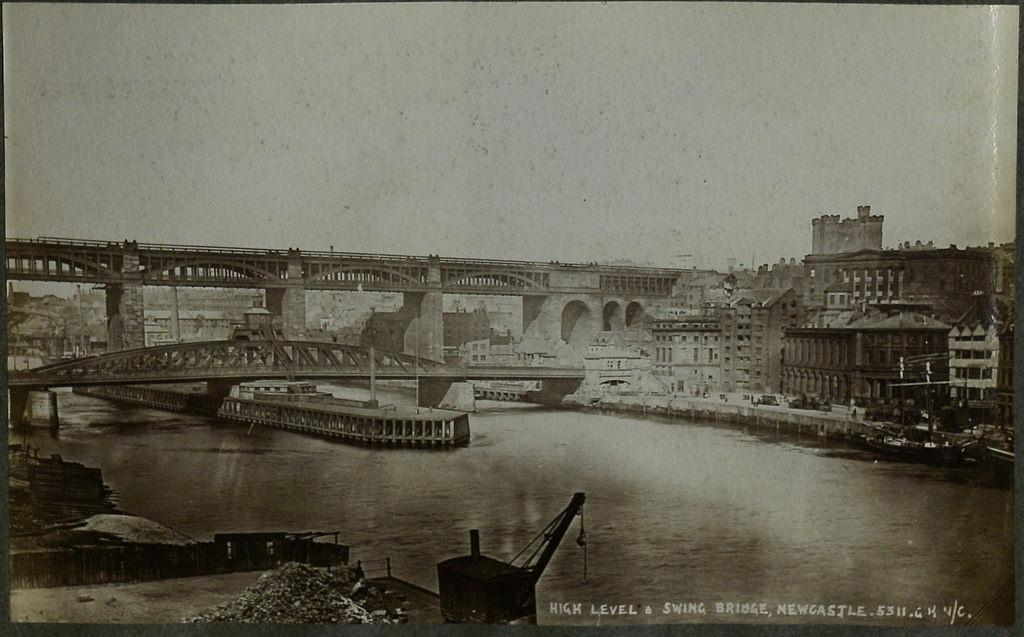

666751:High Level and Swing Bridges Unknown Undated

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
043330:Newcastle Bridges Newcastle upon Tyne City Engineers 1967

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
056617:Newcastle Bridges Newcastle upon Tyne Frith F. c. 1950

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
061428:Newcastle Bridges Newcastle upon Tyne City Engineers c.1995

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
059599:Tyne Bridge at night. Unknown. 1993.

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
037098:'Tommy on the Bridge' Gateshead Unknown c.1905

Pinned by Simon Cotterill
from Victoria Sage (flickr)
Gateshead, ca 1910

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
002580a:Roman Altar

Pinned by Simon Cotterill
from Flickr (flickr)

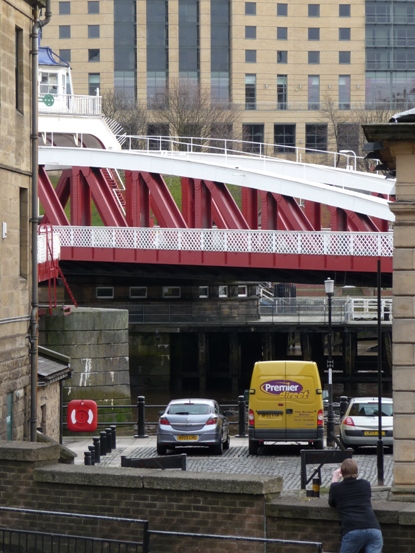

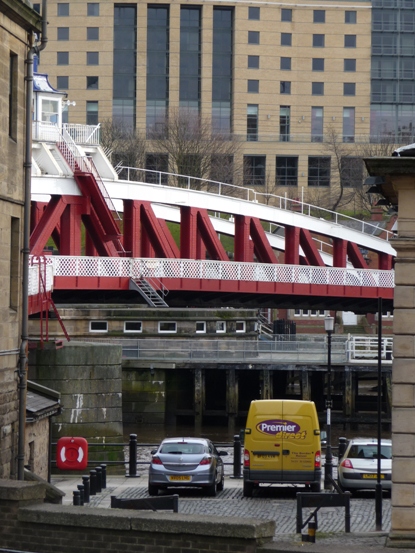

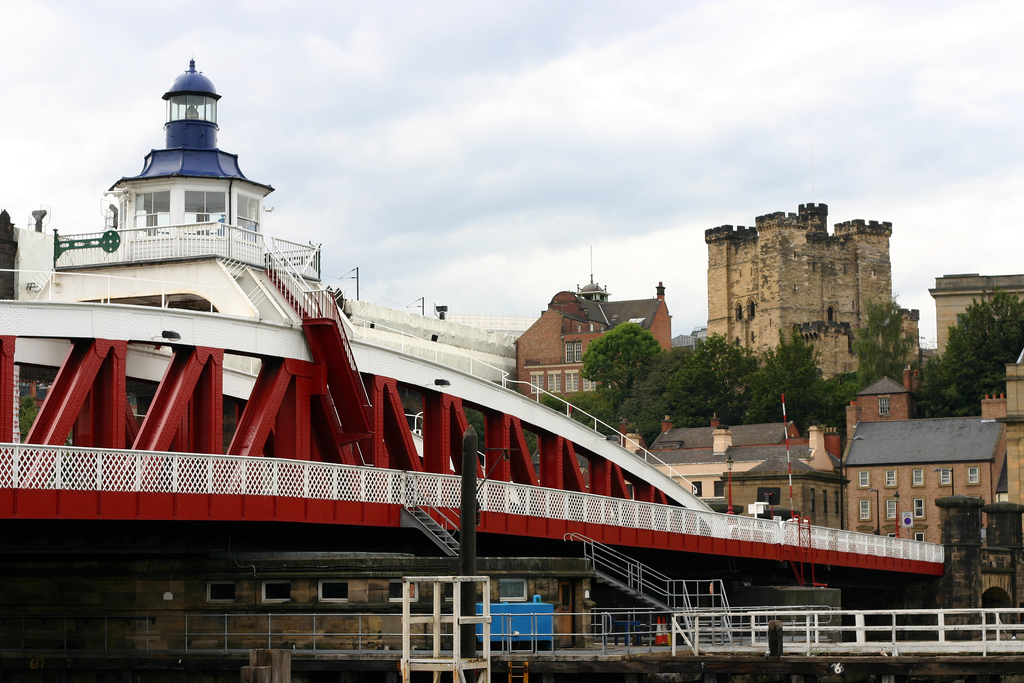

Tyne Swing Bridge

Pinned by Pat Thomson
from TWAM (flickr)
HMS Victoria on the River Tyne

Pinned by Simon Cotterill
from TWAM (flickr)
The Bridges

Pinned by Simon Cotterill
from TWAM (flickr)
Newcastle from the Swing Bridge

Pinned by Simon Cotterill
from Flickr (flickr)

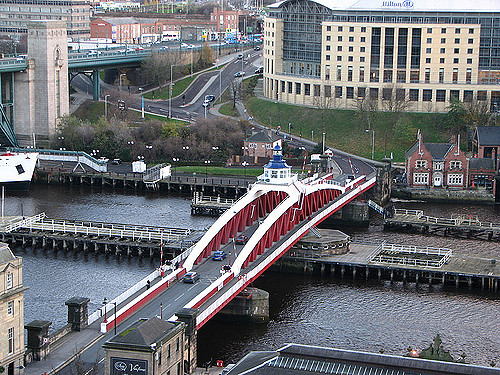

The Swing Bridge - view from the roof of The Castle Keep - Newcastle

Pinned by Simon Cotterill
from Flickr (flickr)

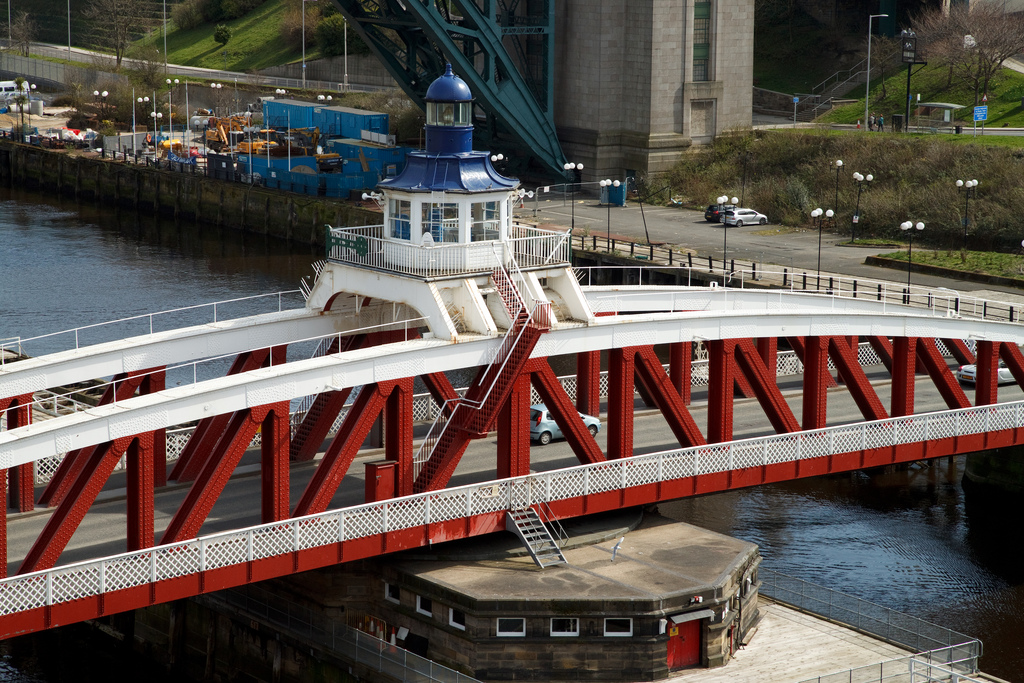

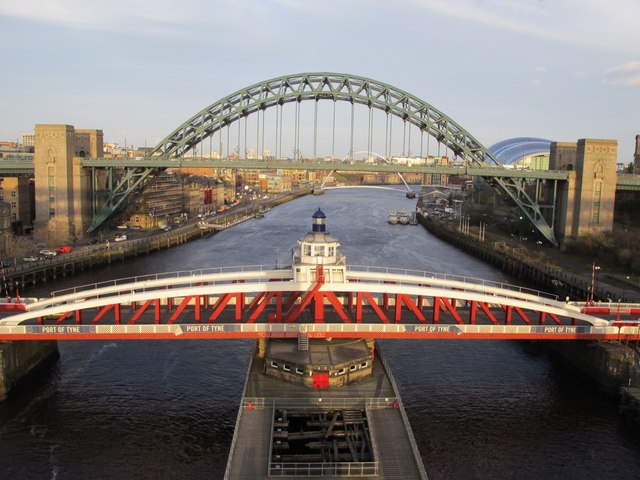

Newcastle: Swing Bridge and Tyne Bridge

Pinned by Simon Cotterill
from Flickr (flickr)

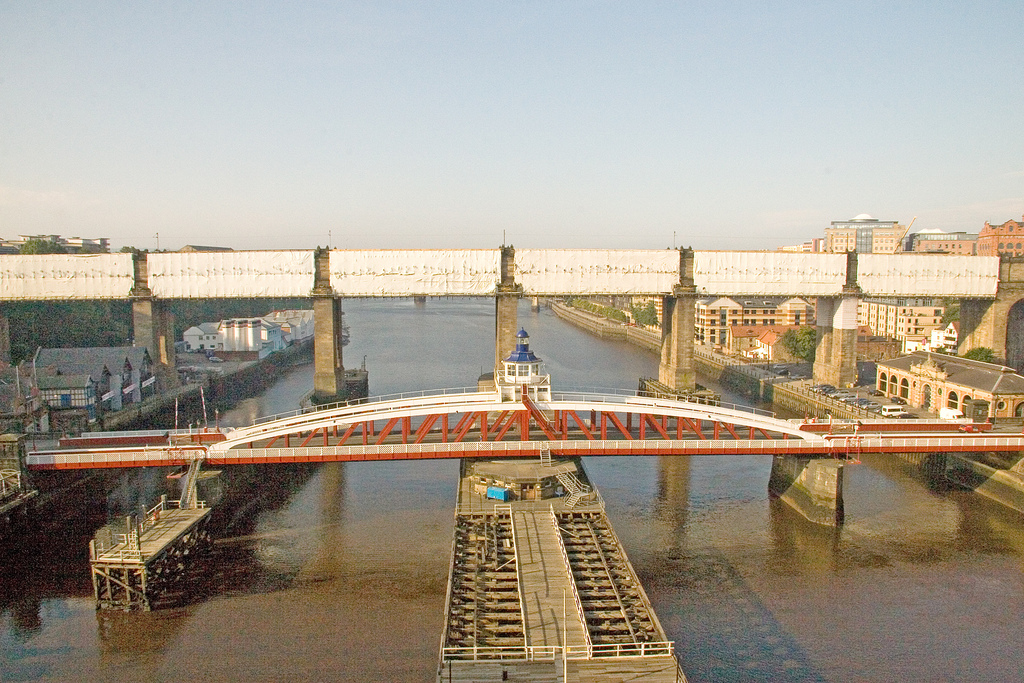

Swing and High Level Bridges Newcastle

Pinned by Simon Cotterill
from Flickr (flickr)
Bridges

Pinned by Simon Cotterill
from Flickr (flickr)
IMG_4417

Pinned by Simon Cotterill
from Flickr (flickr)
Swing Low...

Pinned by Simon Cotterill
from Flickr (flickr)
IMG_8620

Pinned by Simon Cotterill
from Flickr (flickr)
Newcastle - Swing bridge, High-level bridge and castle

Pinned by Simon Cotterill
from Flickr (flickr)

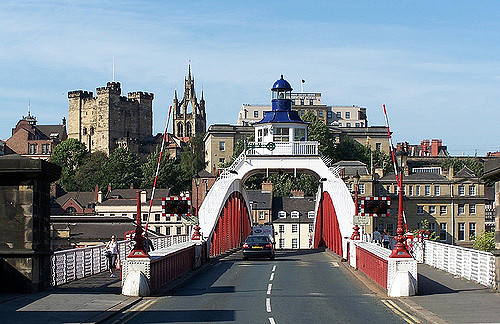

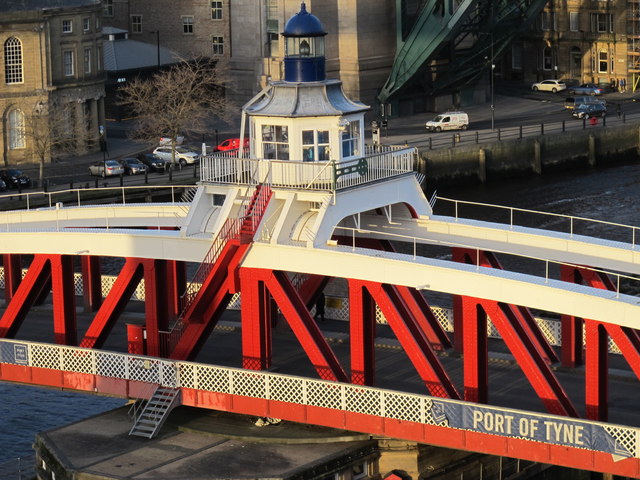

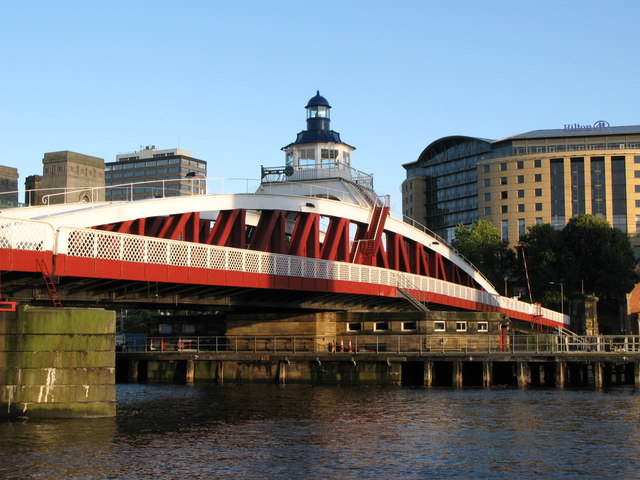

Newcastle Swing Bridge

Pinned by Simon Cotterill
from Geograph (geograph)

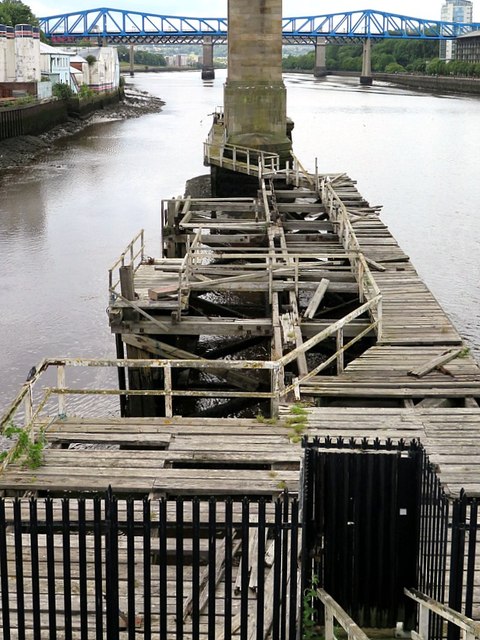

Wooden jetty west of the Swing Bridge

Pinned by Simon Cotterill
from Geograph (geograph)

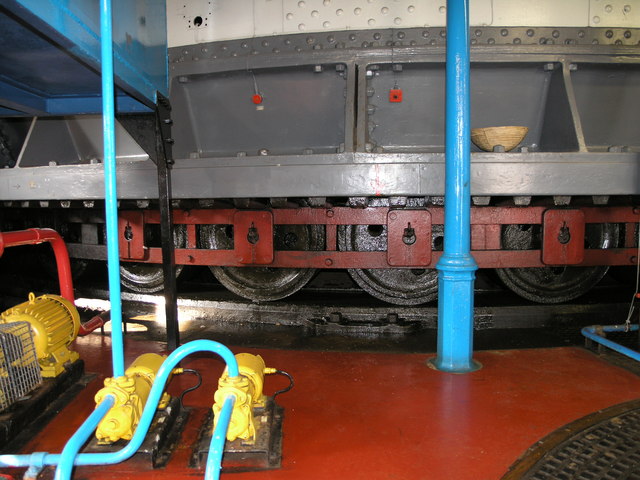

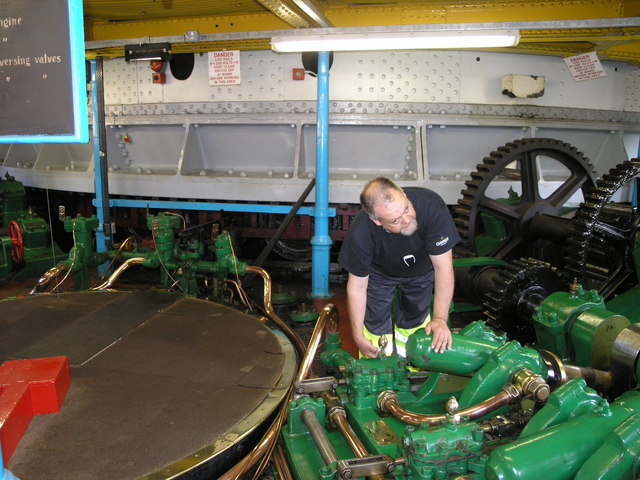

Swing Bridge Machine Room

Pinned by Simon Cotterill
from Geograph (geograph)

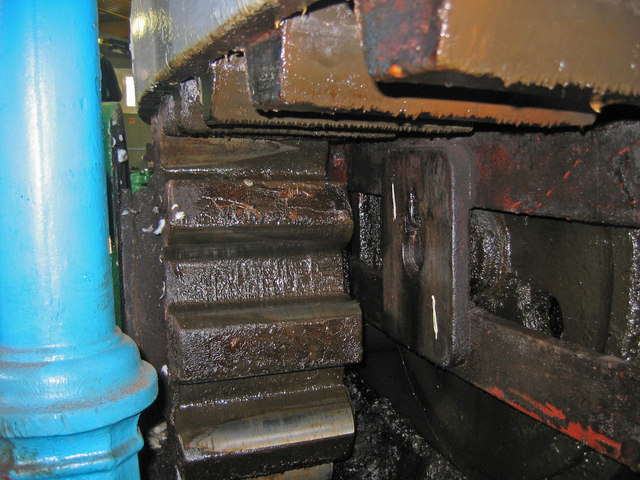

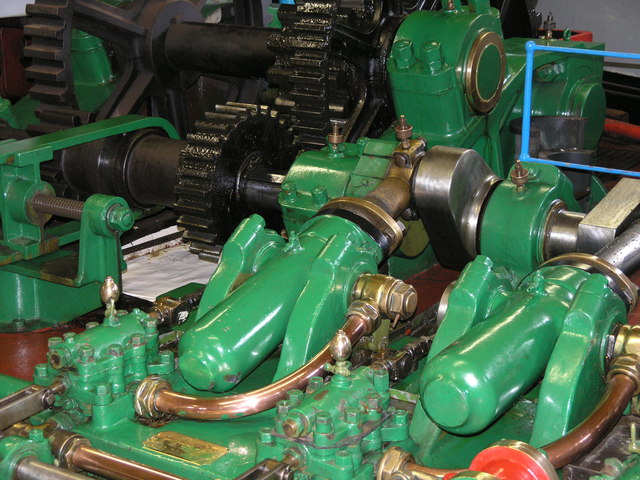

Rack and Pinion Drive, Tyne Swing Bridge

Pinned by Simon Cotterill
Gateshead Quays
  Co-Curate Page
Gateshead Quays
from Newcastle libraries (flickr)
666754:View of Newcastle upon Tyne, 1903 - Auty Collection

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
026140:Newcastle bridges Newcastle upon Tyne Unknown c.1890

Pinned by Simon Cotterill
from TWAM (flickr)
Postcard of a steam tug called Vigilant coming through the swing bridge in Newcastle.

Pinned by Simon Cotterill
from Flickr (flickr)
Image taken from page 29 of 'Newcastle-upon-Tyne Royal Mining, Engineering, & Industrial Exhibition, Jubilee year, 1887. The bridges and the floods of Newcastle-upon-Tyne'

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
066879:A bird's eye view of Newcastle upon Tyne Unknown 1905

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
666797d:View of Newcastle upon Tyne Unknown c.1910

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
666755:High Level and Swing Bridges Newcastle upon Tyne Unknown Undated

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
Tor458, Swing Bridge, Newcastle upon Tyne

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
Tor981, Swing Bridge, Newcastle upon Tyne

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
High Level and Swing Bridge, Newcastle upon Tyne

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
030568:Minas Geraes Newcastle upon Tyne C. 1910

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
053701:No Title available

Pinned by Pat Thomson
from Newcastle libraries (flickr)
003370:No Title available

Pinned by Pat Thomson
from Newcastle libraries (flickr)
023998:High Level and Swing Bridges Newcastle upon Tyne Unknown c.1890

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
038921:No Title available

Pinned by Simon Cotterill
from Flickr (flickr)
BRIDGES

Pinned by Pat Thomson
from Geograph (geograph)

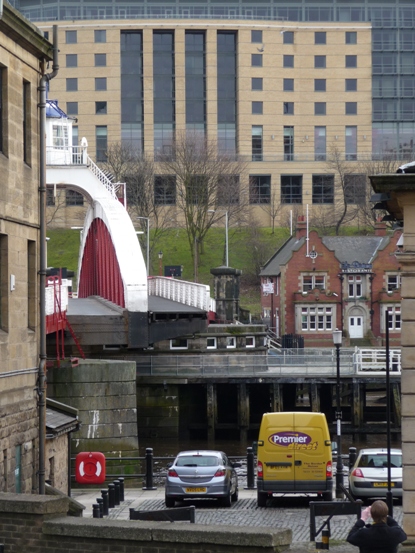

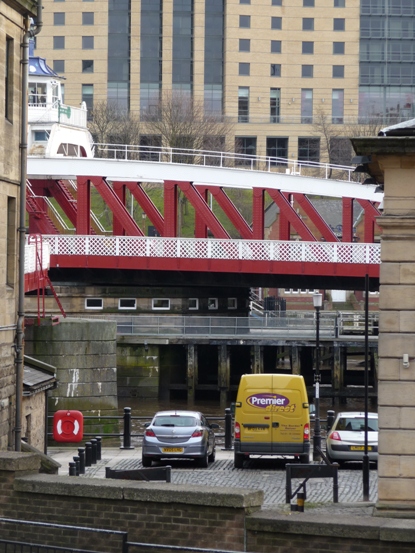

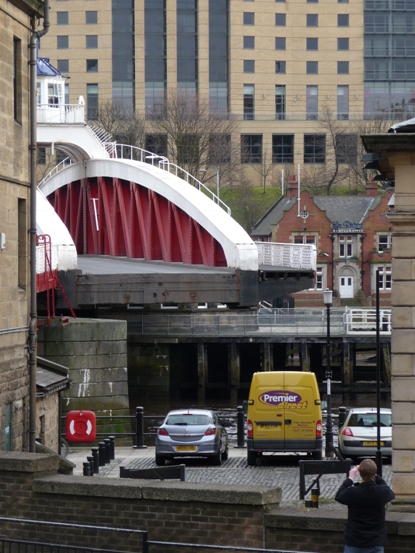

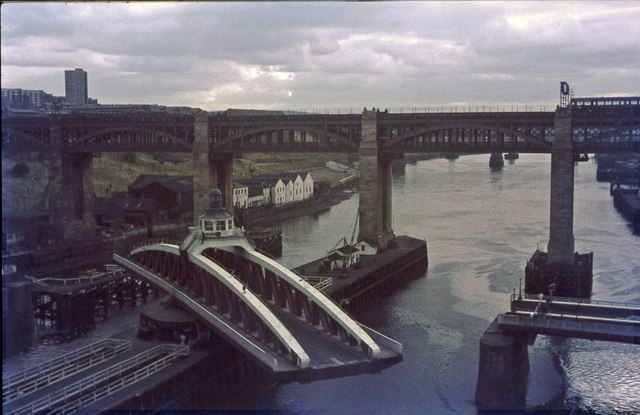

Tyne Swing Bridge opening

Pinned by Simon Cotterill
from Geograph (geograph)

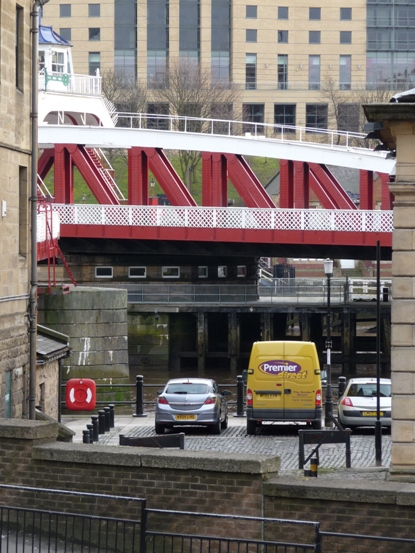

Bridge on the move [1/10]

Pinned by Simon Cotterill
from Geograph (geograph)

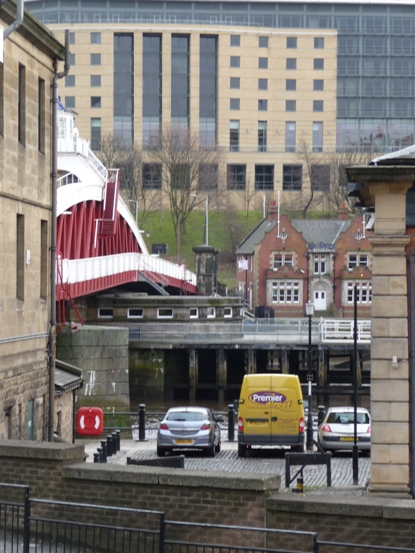

Bridge on the move [2/10]

Pinned by Simon Cotterill
from Geograph (geograph)
Bridge on the move [3/10]

Pinned by Simon Cotterill
from Geograph (geograph)
Bridge on the move [4/10]

Pinned by Simon Cotterill
from Geograph (geograph)
Bridge on the move [5/10]

Pinned by Simon Cotterill
from Geograph (geograph)
Bridge on the move [6/10]

Pinned by Simon Cotterill
from Geograph (geograph)
Bridge on the move [7/10]

Pinned by Simon Cotterill
from Geograph (geograph)
Bridge on the move [8/10]

Pinned by Simon Cotterill
from Geograph (geograph)
Bridge on the move [9/10]

Pinned by Simon Cotterill
from Geograph (geograph)

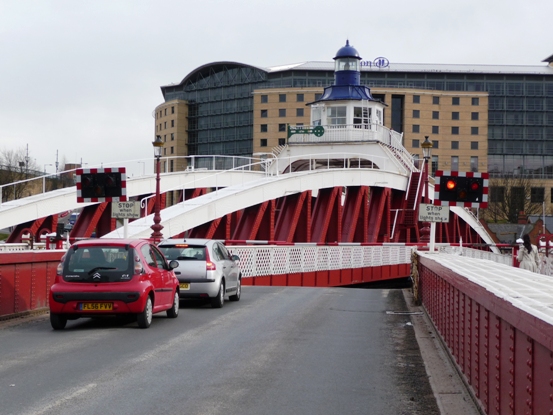

Temporarily closed to traffic

Pinned by Simon Cotterill
from Geograph (geograph)

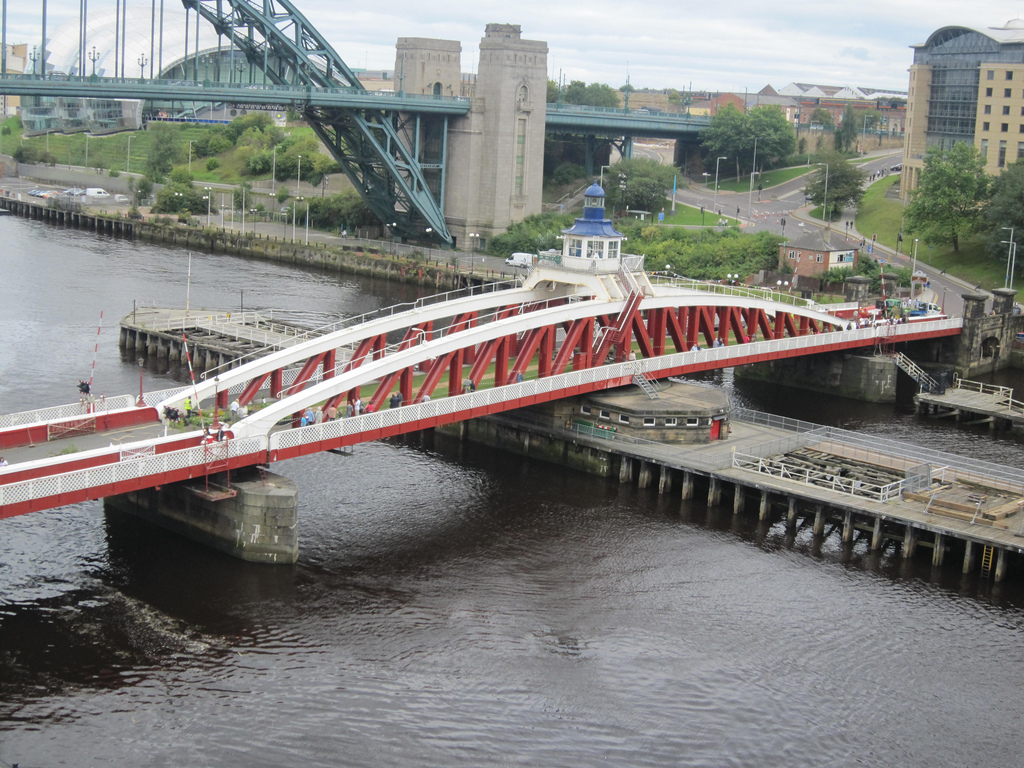

The Swing Bridge
