Coldstream Bridge




Coldstream Bridge, linking Coldstream, Scottish Borders with Cornhill-on-Tweed, Northumberland, is an 18th-century Grade II* listed bridge between England and Scotland, across the River Tweed. The bridge carries the A697 road across the Tweed.

History

The architect for the bridge was John Smeaton (responsible for the third Eddystone Lighthouse), working for the Tweed Bridges Trust. Construction lasted from 1763 to 1767, when it opened.

The cost of the bridge was £6,000, with government grants available for the project and the shortfall covered by a mixture of local subscription and loans from Edinburgh's banks, which were to be paid back by the tolling system. There was controversy when the project's resident engineer, Robert Reid of Haddington, used some of the funds to build accommodation for himself, but the trustees were assuaged when Smeaton argued that the house would actually help support the bridge. It seems that Smeaton was sympathetic to Reid, believing him to be underpaid for his work.

The bridge underwent subsequent work, including the 1784 construction of a downstream weir as an anti-erosion measure, concrete reinforcement of the foundations in 1922, alterations in 1928, and major work in 1960–1961 to strengthen the bridge and widen the road.

A plaque on the bridge commemorates the 1787 visit of the poet Robert Burns to the Coldstream. Of historical note is the toll house on the Scottish side of the bridge, which became infamous for the runaway marriages that took place there, as at Gretna Green, hence its name, the 'Wedding House' or 'Marriage House'. It ceased to be a toll bridge in 1826.

Listed building

The Coldstream Bridge 'that part in England' (Northumberland) was Grade II* listed in 1952, being described in the English Heritage listing as "an ambitious, well-proportioned, and carefully-detailed C18 bridge design."

The Coldstream Bridge '(that part in Scotland) over the Tweed' (Scottish Borders) was Category A listed in 1971, being described in the Historic Scotland listing as "A very fine example of an 18th century bridge design by pre-eminent civil engineer John Smeaton, his first example of a bridge executed in fine dressed sandstone with classical detailing and forming a prominent structure in the landscape of the border between Scotland and England."

Structure

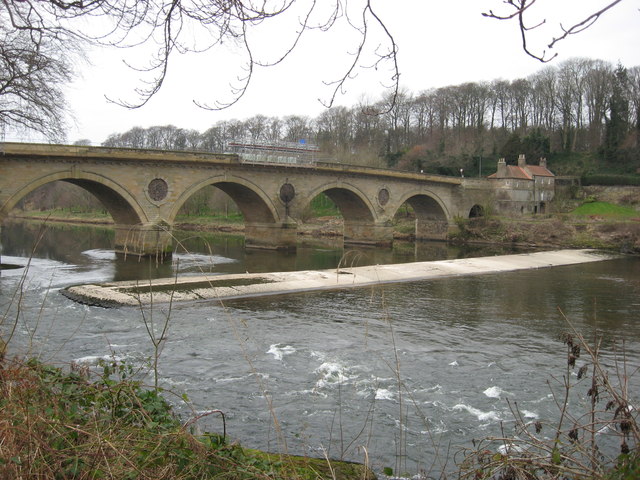

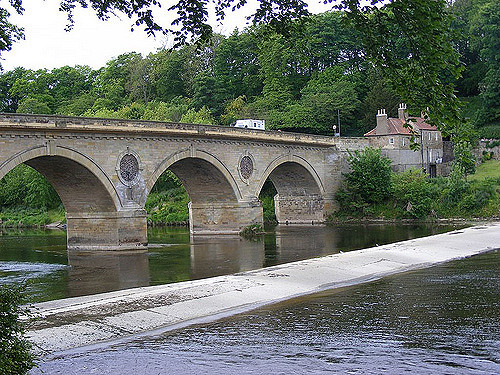

The bridge is made of "squared and tooled sandstone blocks with ashlar dressings". A circular occulus in the spandrel above each pier is filled in with whinstone rubble. The five main arches each have an arch band and a triple keystone; the arches grow larger and higher towards the bridge's centre. There is a smaller semicircular flood arch at either end, with pendent keystones. A weir named the Cauld immediately downstream of the bridge has protected it from erosion since 1785.

Text from Wikipedia, available under the Creative Commons Attribution-ShareAlike License (accessed: 19/05/2017).
Visit the page: Coldstream Bridge for references and further details. You can contribute to this article on Wikipedia.
from Flickr (flickr)
Coldstream

Pinned by Simon Cotterill
from Geograph (geograph)

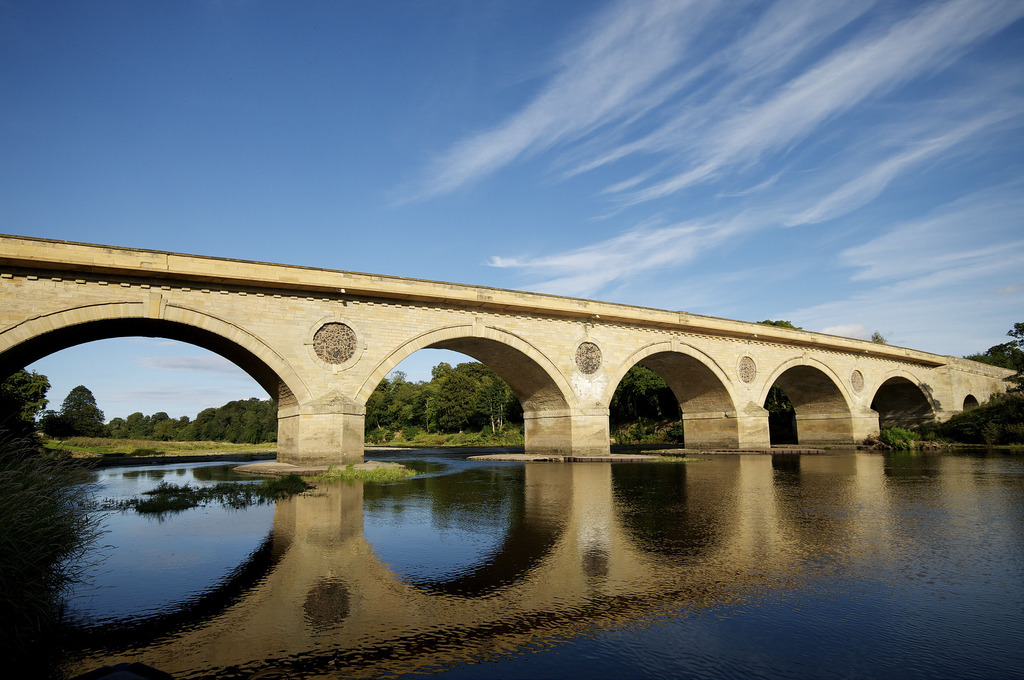

Coldstream Bridge

Pinned by Simon Cotterill
from https://historicengland.org...
COLDSTREAM BRIDGE (THAT PART IN ENGLAND)
- "An C18 road bridge, designed by John Smeaton, spanning the River Tweed and the border between England and Scotland. Work on the bridge began in July 1763 and it was ...

Added by
Simon Cotterill
from Geograph (geograph)

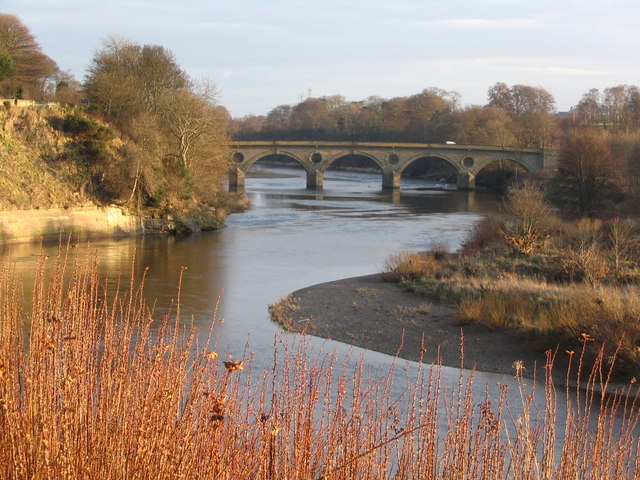

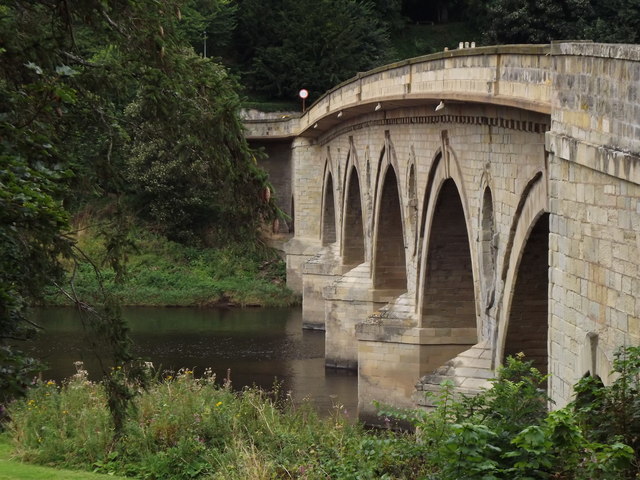

Bridge over the Tweed

Pinned by Simon Cotterill
from Geograph (geograph)

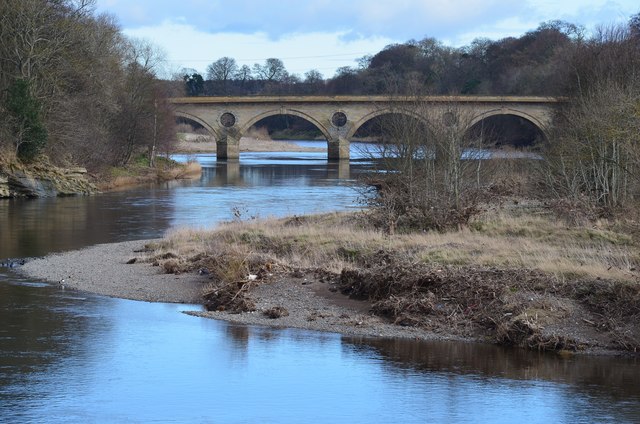

Coldstream Bridge and the Tweed

Pinned by Simon Cotterill
from Geograph (geograph)
Coldtream Bridge

Pinned by Simon Cotterill
from Geograph (geograph)

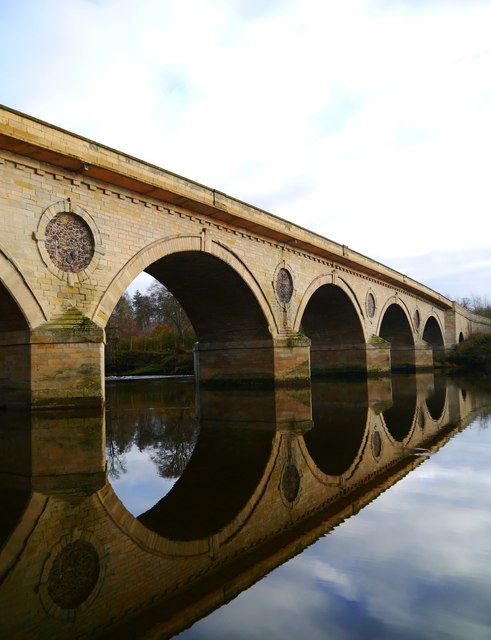

Coldstream Bridge

Pinned by Simon Cotterill
from Geograph (geograph)

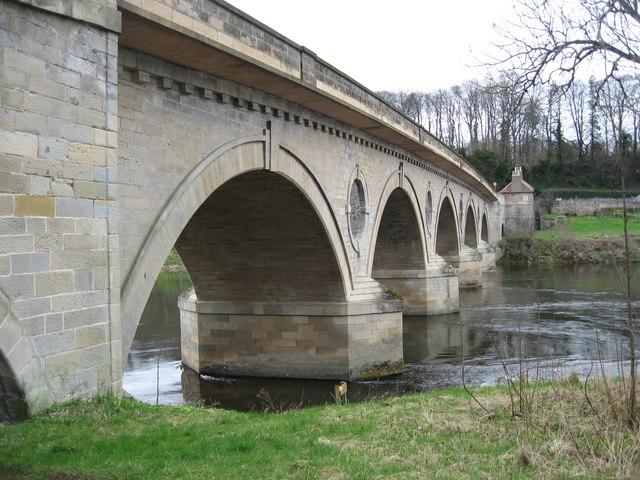

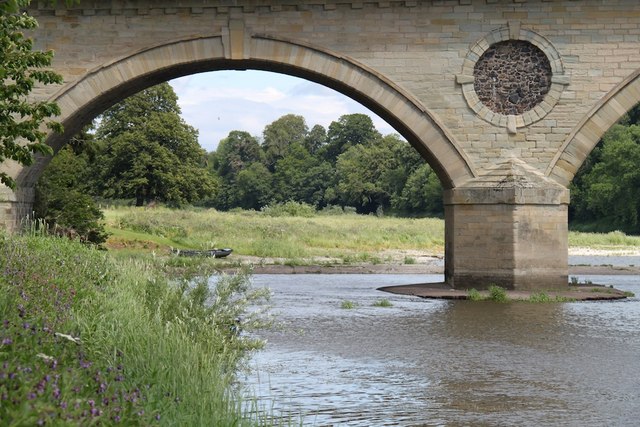

Bridge detail

Pinned by Simon Cotterill
from Geograph (geograph)
England Sign on Coldstream Bridge

Pinned by Simon Cotterill
from Geograph (geograph)

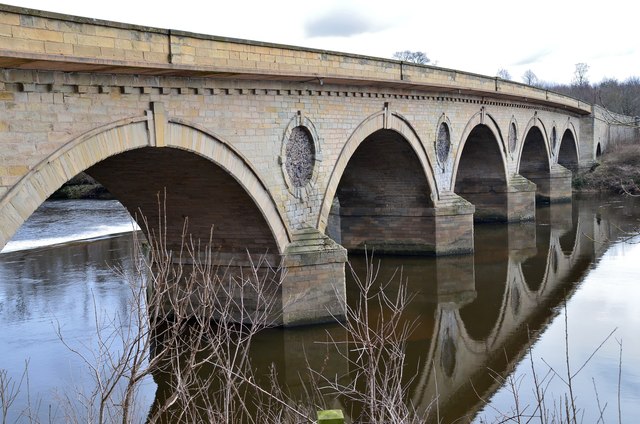

The Coldstream Bridge

Pinned by Simon Cotterill
from Geograph (geograph)

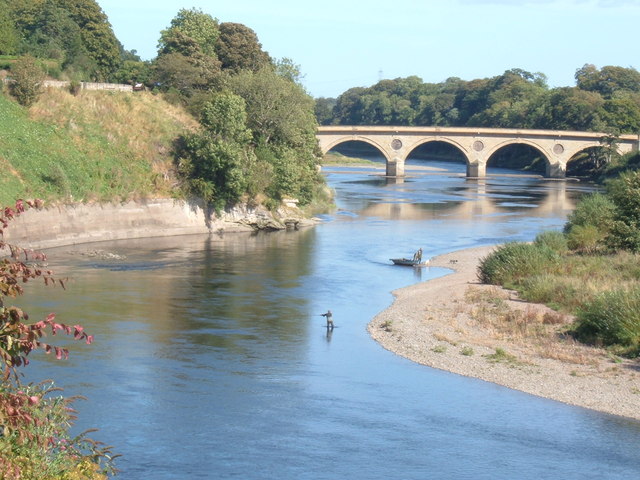

River Tweed at Coldstream

Pinned by Simon Cotterill
from Geograph (geograph)
Coldstream Bridge

Pinned by Simon Cotterill
from https://commons.wikimedia.o...
Plaque at centre of Coldstream bridge
- Photo by Chiswick Chap, 2012, c/o Wikimedia Commons, available under a Creative Commons Attribution-Share Alike 3.0 Unported license. "Plaque at centre of Coldstream bridge, reading as follows: COLDSTREAM ...

Added by
Simon Cotterill
from Flickr (flickr)
spittal 054 [1024x768]

Pinned by Simon Cotterill
from https://commons.wikimedia.o...

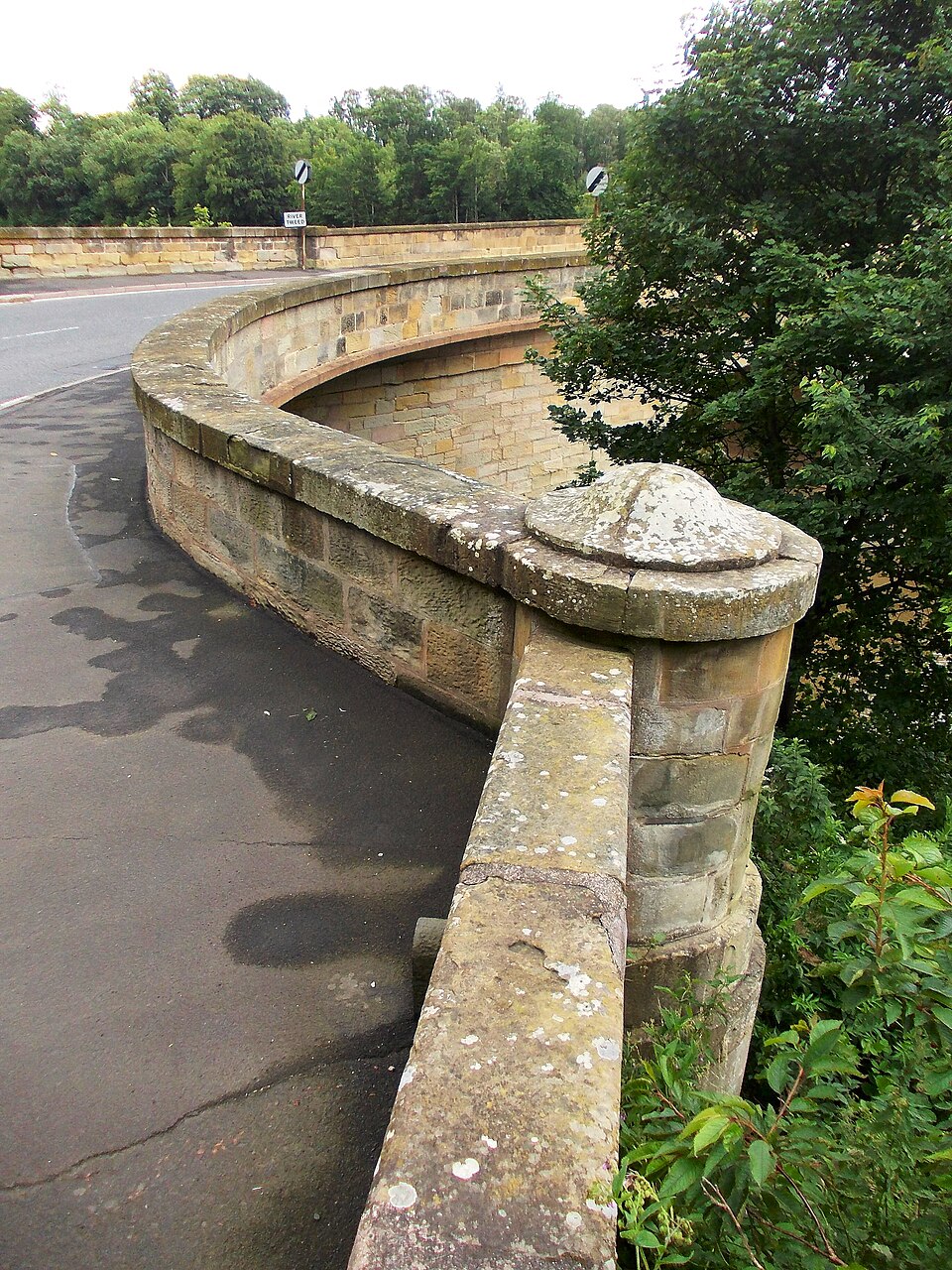

Round Buttress on Scottish side of Coldstream Bridge.
- Photo by Chiswick Chap, 2012, c/o Wikimedia Commons, available for reuse under a Creative Commons Attribution-Share Alike 3.0 Unported license.

Added by
Simon Cotterill
