Timothy Hackworth (1786-1850)


Timothy Hackworth was an engineer and inventor, born in Wylam on the 22nd December 1786. He began work as an apprentice blacksmith under his father at Wylam Colliery, where he later worked on steam locomotives as they were first beginning to be used at the colliery. Whilst at Wylam Colliery he assisted William Hedley in the production of Puffing Billy, the world's oldest surviving steam locomotive. Later, living in Shildon he became the first locomotive superintendent of the Stockton and Darlington Railway. He was influential in the development of the first Stephenson locomotive ' Locomotion No 1' and many other steam locomotives.

Timothy Hackworth (22 December 1786 – 7 July 1850) was a steam locomotive engineer who lived in Shildon, County Durham, England and was the first locomotive superintendent of the Stockton and Darlington Railway.

Youth and early work

Born in Wylam in 1786, Timothy Hackworth was the eldest son of John Hackworth who occupied the position of foreman blacksmith at Wylam Colliery until his death in 1804; the father had already acquired a considerable reputation as a mechanical worker and boiler maker. At the end of his apprenticeship in 1807 Timothy took over his father's position. Since 1804, the mine owner, Christopher Blackett had been investigating the possibilities of working the mine's short colliery tramroad by steam traction. Blackett set up a four-man working group including himself, William Hedley, the viewer; Timothy Hackworth, the new foreman smith and Jonathan Foster, a "wright". The first step in 1808 was the relaying of the Wylam tramway with cast iron plates, until then a simple timber-way. In 1811, the four-man team began investigating the adhesive properties of smooth wheels using a manually operated carriage propelled by a maximum of four men, and in the same year a single-cylinder locomotive devised by one Waters, reportedly on the Trevithick model, was built and tried for a few months with erratic results.

In the meantime a new dilly, (the term used to designate all locomotives at Wylam), was put in hand and set to work in the Autumn of 1812. However even Blackett's new cast iron plateway was found inadequate to sustain the weight of a dilly and the subsequent one built in 1813 was carried on two four-wheeled "power bogies" and it is understood that the first one was similarly rebuilt. On the relaying, around 1830, of the Wylam line with wrought iron edge rails, the two locomotives were reverted to the 4-wheel arrangement, continuing to work until the closing of the line in 1862. What is considered to be the earlier of the two engines, now known as "Puffing Billy" is conserved at the Science Museum in London; the second Wylam Dilly is in the Royal Scottish Museum in Edinburgh.

Although William Hedley is generally credited with the "design" of the locomotives, there is strong evidence that these issued from the aforementioned joint collaboration in which Christopher Blackett was the driving force with Timothy Hackworth playing a preponderant engineering role. Furthermore it subsequently fell to Hackworth to maintain the locomotives in running order and improve performance. As time went on, Blackett became increasingly occupied by other outside interests and was often absent, leaving Hedley in charge of the mine; Hackworth found himself in conflictual situations due his Methodist activities and his refusal to work on the Sabbath, until he felt obliged to leave Wylam in 1816.

He was not long in finding other employment at Walbottle Colliery where he took up the same position of foreman blacksmith.

The Royal George

In 1824, Hackworth occupied a temporary position as a "borrowed man" or relief manager at the Forth Street factory of Robert Stephenson and Company, whilst Robert was away in South America and George was occupied with the surveying of new railways, notably the Liverpool and Manchester. Hackworth only stayed until the end of that year, following which, he returned to Walbottle occupying his time with contract work until, upon the recommendation of George Stephenson, he was appointed on 13 May 1825 to the position of locomotive superintendent of the Stockton and Darlington Railway, a post he was to occupy until May 1840

Hackworth is believed to have been influential in the development of the first Stephenson locomotive intended for the Stockton and Darlington Railway during his time at the Forth Street factory. That locomotive, then named Active, now known as Locomotion No 1, was delivered to the railway just before the opening ceremony on 27 September 1825. Three more of the same type were delivered in the following months and difficulties in getting them into operating order were such as to risk compromising the use of steam locomotives for years to come, had it not been for Hackworth's persistence. This persistence resulted in his developing the first adequate locomotive adapted to the rigours of everyday road service. The outcome was the Royal George of 1827, an early 0-6-0 Locomotive, that among many new key features notably incorporated a correctly aligned steam blastpipe. Hackworth is usually acknowledged as the inventor of this concept. From 1830 onwards the blastpipe was employed by the Stephensons for their updated Rocket and all subsequent new types. Recent letters acquired by the National Railway Museum would appear to confirm Hackworth as the inventor of the device. Since Trevithick's time, it had long been common practice to turn the exhaust steam from the cylinders into the chimney using "eductor pipes" for convenience and noise reduction, and its effect on the fire certainly had been noticed. Whatever the case, Hackworth was probably the first engineer in history to fully take into account the role of the blast in automatically realising the "perfect equilibrium between steam production and usage" in a locomotive when fitted with a firetube boiler, and to consider the blastpipe as a distinct device, paying close attention to its proportions, nozzle size, positioning and precise alignment.

Sans Pareil and the Rainhill trials

In 1829 the Liverpool and Manchester, the world's first "Inter-City" railway, was under construction. There was a large potential for both passenger and goods traffic. However, all locomotives built to date, including those for the Stockton and Darlington, had been intended for slow freight, with any passenger service handled by single horse-drawn coaches. It was therefore clear that any future locomotives would have to be more versatile. Matters were further complicated by the news about the problems being encountered on the Stockton and Darlington, which gave rise to considerable controversy as to the sort of motive power to be preferred. George Stephenson, the line's civil engineer, was unsurprisingly firmly in favour of steam traction and asked for a report from Timothy Hackworth, who confirmed that he was having difficulties but was optimistic about overcoming them. To settle upon a locomotive type the directors set up a competition. The trials were held at Rainhill, and there were three serious contestants. Hackworth, with his own very limited resources, entered the 0-4-0 locomotive, Sans Pareil. This locomotive was deemed officially overweight, but nevertheless was allowed to undergo the "ordeal". Unfortunately faulty cylinder casting led to steam leaks and premature abandonment of the course.

Stephenson's Rocket was the outright winner as the only locomotive that stayed the course whilst fully complying with the rules. In the event, none of the contestants really answered the railway's requirements. Hackworth stayed on after the event, repairing the Sans Pareil and was able to show that it more than met requirements. On the strength of this, the L&M management did purchase the locomotive, subsequently reselling it at a loss to the Bolton & Leigh Railway where it worked until 1844. As Ahrons points out, the vertical cylinders would have given rise to considerable hammer-blow at speed and made it unsuited to passenger service on the track of that time in the long term. Nevertheless, it was a formidable contender, largely due to the carefully designed and tuned blastpipe.

However, the Rainhill trials may be seen as a milestone event, as during the eight days it lasted there were considerable modifications carried out on the three main contestants in which Hackworth participated tirelessly and displayed absolute impartiality. From that date on, locomotive design and performance went forward by leaps and bounds.

Later productions

In addition to his duties on the Stockton and Darlington, Hackworth set up his own business in which his son, John Wesley Hackworth, fully participated. This business produced a variety of machinery.

Notably, he built at Shildon in 1836, the first locomotive to run in Russia for the Tsarskoye Selo Railway, of which his son was responsible for the safe delivery and preliminary trials. Also in 1838, the Samson was built for the Albion Mines Railway in Nova Scotia, and was one of the first engines to run in Canada.

One of his 1833 apprentices, Daniel Adamson, later further developed his boiler designs and become a successful manufacturer (and influential in the inception of the Manchester Ship Canal).

The last new locomotive design with which Timothy Hackworth was involved was the Sans Pareil II, a "demonstrator" of 1849. This locomotive was an advanced 2-2-2 engine of the Jenny Lind type with 6' 6" driving wheel, heating surface and some use of welding in the boiler construction. In performance, it fully lived up to expectations in regards to economy and load-hauling performance. Hackworth was so satisfied that he issued a public challenge to Robert Stephenson to pit his latest York Newcastle and Berwick locomotive, No. 190, against it in a trial. Nothing more was ever heard of this.

Family

Timothy Hackworth had three sons and six daughters. His eldest son, John Wesley Hackworth (1820-1891), carried on the business after the death of his father. J.W. Hackworth patented the Hackworth valve gear in 1859.

Legacy

Today he has a school named after him in his hometown of Shildon where the pupils annually learn of Timothy Hackworth and his work. His home was also turned into a museum, which has since being renovated and an annexe of the National Railway Museum has been built nearby. The 1839 Hackworth locomotive Samson is preserved in Canada at the Nova Scotia Museum of Industry in Stellarton, Nova Scotia.

Text from Wikipedia, available under the Creative Commons Attribution-ShareAlike License (accessed: 09/04/2016).
Visit the page: Timothy Hackworth for references and further details. You can contribute to this article on Wikipedia.
People in History Engineers Christopher Blackett (1751 - 1829) Puffing Billy Wylam Colliery Timothy Hackworth Primary School Shildon Locomotion - Railway Museum at Shildon William Hedley (1779-1843) Wylam Monument to Timothy Hackworth Stockton and Darlington Railway
from http://commons.wikimedia.org/…
Painting of Timothy Hackworth
- Public domain image c/o Wikimedia Commons.

Added by
Simon Cotterill
from Flickr (flickr)
Hackworth House Museum, New Shildon 29.06.2009 P6290071

Pinned by Simon Cotterill
from Flickr (flickr)
Timothy Hackworth's house at Shildon

Pinned by Simon Cotterill
from Flickr (flickr)

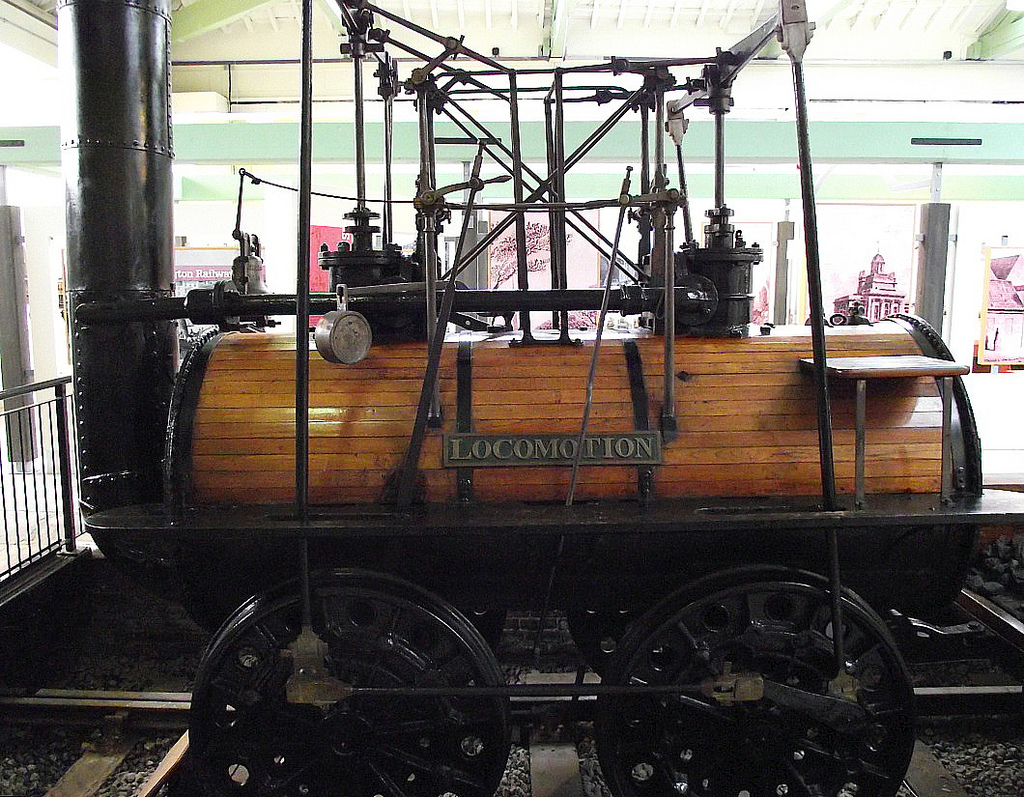

Locomotion No. 1, Stockton and Darlington Railway

Pinned by Simon Cotterill
from Flickr (flickr)
Puffing Billy

Pinned by Simon Cotterill
from Flickr (flickr)
Liverpool & Manchester Railway 0-4-0 'Sans Pareil' (1829) Shildon 29.06.2009 P6290074

Pinned by Simon Cotterill
from Flickr (flickr)
Puffing Billy

Pinned by Simon Cotterill
from Geograph (geograph)
Timothy Hackworth Primary School

Pinned by Simon Cotterill
from Flickr (flickr)

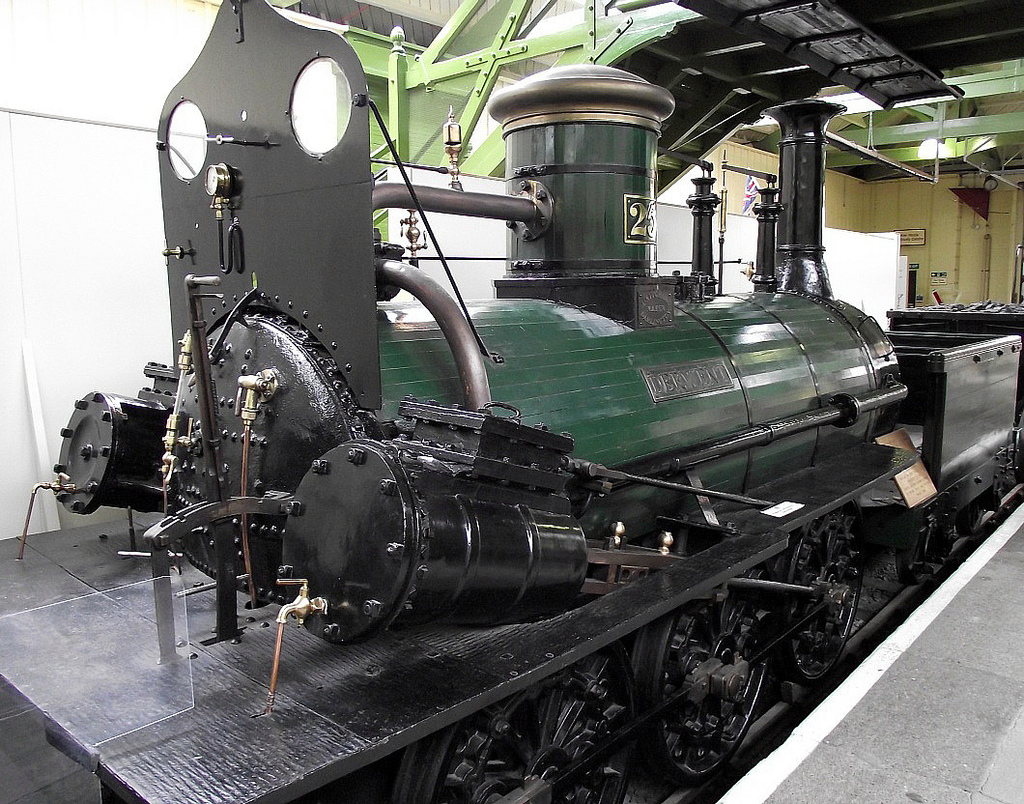

Stockton and Darlington Railway 0-6-0 No. 25 'Derwent' - Darlington Railway Museum
