William Hedley (1779-1843)


William Hedley was born in Newburn on 13th July 1779. He was a pioneering industrial engineer and viewer (manager) of Wylam Colliery where he built the first practical steam locomotive which relied simply on the adhesion of steel wheels on steel rails, rather than rails with teeth. In 1813, with the assistance Timothy Hackworth and Jonathan Foster, he built the Puffing Billy - the oldest surviving steam locomotive.

William Hedley (13 July 1779 – 9 January 1843) was born in Newburn, near Newcastle upon Tyne. He was one of the leading industrial engineers of the early 19th century, and was instrumental in several major innovations in early railway development. While working as a 'viewer' or manager at Wylam Colliery near Newcastle upon Tyne, he built the first practical steam locomotive which relied simply on the adhesion of iron wheels on iron rails.

Early locomotives

Before Hedley's time, such locomotives were far too heavy for the track that was then available. While most lines used cable haulage with stationary engines, various other schemes had been tried. William Chapman at the Butterley Company in 1812, attempted to use a steam engine which hauled itself along a cable, while, at the same company, Brunton had produced the even less successful "mechanical traveller", or Steam Horse.

However, in 1812, Matthew Murray and John Blenkinsop had produced the first twin cylinder steam locomotive, Salamanca, for Middleton Colliery railway near Leeds, using a pinion engaging with teeth along the iron edge rails track (first rack railway). This had been the first steam locomotive railway to work successfully, but the system was complex and expensive.

Hedley's improvements

First locomotive

Hedley felt that if the pairs of wheels were connected, as with Richard Trevithick's engines, if one pair began to slip, it would be counteracted by the other. The mine owner, Christopher Blackett had just replaced the wooden waggonway with iron flanged 'L' section plate rails. Hedley first constructed a test carriage operated by manpower, to test the adhesion under various loads. He then used it as the chassis for a locomotive constructed to Trevithick's pattern with a single cylinder and a simple straight through fire tube to the boiler. This engine was not satisfactory. Its motion was erratic, because of the single cylinder, and it produced insufficient steam.

Puffing Billy and Wylam Dilly

He built a second engine, with the assistance of the, later to be famous, Timothy Hackworth, his foreman smith, and his principal engine wright, Jonathan Forster, using the 1812 twin cylinder plan of John Blenkinsop and Matthew Murray and a return flue boiler. This was the famous steam locomotive, Puffing Billy which first ran in 1813 and is now preserved at the Science Museum in London. Its success encouraged them to build a second engine Wylam Dilly, which is now in the Royal Museum in Edinburgh. In the same year, his system for using a coupling between the wheels was patented.

Modifications

However, there was still considerable wear to the track, and the engines were rebuilt using twin four-wheeled bogies, introduced in Blackwell's design mentioned above. Initially the wheels were without flanges for use on the flanged plate rails. In about 1830 the line was relaid with the stronger edge rails, and both locomotives reverted to their original pattern, but with flanged wheels, which is how they are today. Both locos remained in active service until 1862.

Death

Hedley died in 1843 at Burnhopeside Hall, near Lanchester and was buried at Newburn parish church. Four sons survived him and his descendants remained heavily involved in the coal-mining industry until nationalisation in the 1940s. In 1971, a charitable foundation was set up in the Hedley name, with assets based on the compensation from nationalisation.

Text from Wikipedia, available under the Creative Commons Attribution-ShareAlike License (accessed: 09/04/2016).
Visit the page: William Hedley for references and further details. You can contribute to this article on Wikipedia.
from http://commons.wikimedia.or...
William Hedley
- Public domain image (copyright expired). "Painting from 1808 (online found at http://www.cottontimes.co.uk/hedley.htm"

Added by
Pat Thomson
from Flickr (flickr)
Puffing Billy

Pinned by Pat Thomson
from Beamish (flickr)

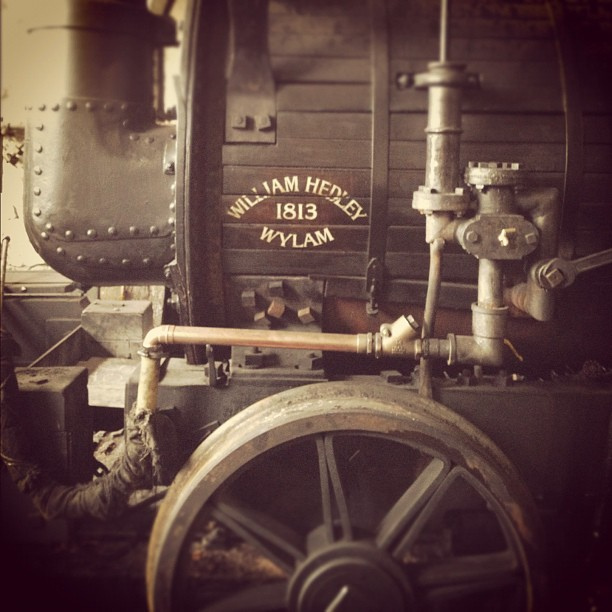

William Hedley - Wylam. Puffing Billy at Beamish

Pinned by Pat Thomson
Puffing Billy
  Co-Curate Page
Puffing Billy
- Summary About Puffing Billy Puffing Billy, built 1813, is the oldest surviving steam locomotive. It was built by William Hedley (engineer),  Jonathan Forster (engine wright) and Timothy Hackworth (blacksmith)  for ...
from http://commons.wikimedia.or...
Wylam Dilly circa 1862
- Photo 1850s; "Although the Blackett family were the colliery owners, the engineer of the locomotives is now recognised as William Hedley, with the assistantance of Timothy Hackworth and Jonathan Forster ...

Added by
Pat Thomson
from Flickr (flickr)
Puffing Billy

Pinned by Pat Thomson
  Co-Curate Page
Wylam Colliery
- "John Blackett (1712-1779) established coal mining and Wylam Colliery in the township in the mid 18th century. The waggonway connecting the colliey to the River Tyne at Lemington was built ...
from http://www.gracesguide.co.u...
William Hedley
- "William Hedley (July 13, 1779 – January 9, 1843), a colliery viewer and lessee, was one of the leading industrial engineers of the early 19th century, and was instrumental in several ...

Added by
Simon Cotterill
Burnhope Colliery (1850 - 1949)
  Co-Curate Page
Burnhope Colliery (1850 - 1949)
- The sinking of Burnhope Colliery began in April, 1850. There were several pits and drift mines associated with the colliery over the years: Annie Pit, Betty Pit, Engine Pit, Fell Pit, Fortune Pit, Ralph ...
