North Eastern Railway


The North Eastern Railway company (NER) was incorporated in 1854. In 1923. it was absorbed into the London and North Eastern Railway (LNER), which in turn was nationalised in 1948  and most of it became part of either British Railways Eastern Region  or  British Railways North Eastern Region.

The North Eastern Railway (NER) was an English railway company. It was incorporated in 1854 by the combination of several existing railway companies. Later, it was amalgamated with other railways to form the London and North Eastern Railway at the Grouping in 1923. Its main line survives to the present day as part of the East Coast Main Line between London and Edinburgh.

Introduction

Unlike many other pre-Grouping companies the NER had a relatively compact territory, in which it had a near monopoly. That district extended through Yorkshire, County Durham and Northumberland, with outposts in Westmorland and Cumberland. The only company penetrating its territory was the Hull & Barnsley, which it absorbed shortly before the main grouping. The NER's main line formed the middle link on the Anglo-Scottish "East Coast Main Line" between London and Edinburgh, joining the Great Northern Railway near Doncaster and the North British Railway at Berwick-upon-Tweed.

Although primarily a Northern English railway, the NER had a short length of line in Scotland, in Roxburghshire, with stations at Carham and Sprouston on the Tweedmouth-Kelso route (making it the only English railway with sole ownership of any line in Scotland), and was a joint owner of the Forth railway bridge and its approach lines. The NER was the only English railway to run trains regularly into Scotland, over the Berwick-Edinburgh main line as well as on the Tweedmouth-Kelso branch.

The total length of line owned was 4,990 miles (8,030 km) and the company's share capital was £82 million. The headquarters were at York and the works at Darlington, Gateshead, York and elsewhere.

Befitting the successor to the Stockton & Darlington Railway, the NER had a reputation for innovation. It was a pioneer in architectural and design matters and in electrification. In its final days it also began the collection that became the Railway Museum at York, now the National Railway Museum.

In 1913 the company achieved a total revenue of £11,315,130 (equivalent to £1,021,790,000 in 2016) with working expenses of £7,220,784 (equivalent to £652,060,000 in 2016).

Constituent parts of the NER

Constituent companies of the NER are listed in chronological order under the year of amalgamation.

Their constituent companies are indented under the parent company with the year of amalgamation in parenthesis.

If a company changed its name (usually after amalgamation or extension), the earlier names and dates are listed after the later name.

The information for this section is largely drawn from Appendix E (pp 778–779) in Tomlinson.

1854

  • York, Newcastle and Berwick Railway was York and Newcastle Railway (1846–1847) and Newcastle and Darlington Junction Railway (1842–1846)
    • Durham Junction Railway (1844)
    • Brandling Junction Railway (1845)
    • Durham and Sunderland Railway (1846)
    • Pontop and South Shields Railway (1846)
      • Stanhope and Tyne Railway (1842)
    • Newcastle and Berwick Railway (1847)
      • Newcastle and North Shields Railway (1845)
    • Great North of England Railway (1850)
  • York and North Midland Railway
    • Leeds and Selby Railway (1844)
    • Whitby and Pickering Railway (1845)
    • East and West Yorkshire Junction Railway (1852)
  • Leeds Northern Railway was Leeds and Thirsk Railway (1845–1849)
  • Malton and Driffield Railway

1857

  • Deerness Valley Railway
  • Hartlepool Dock and Railway

1858

  • North Yorkshire and Cleveland Railway

1859

  • Bedale and Leyburn Railway

1862

  • the "N.E.R. Foss Island BR" railway line, which appears on the 1860 Ordnance Survey map near Elmfield College
  • Hull and Holderness Railway
  • Newcastle and Carlisle Railway
    • Blaydon, Gateshead and Hebburn Railway (1839)

1863

  • Stockton and Darlington Railway
    • Darlington and Barnard Castle Railway (1858)
    • Middlesbrough and Guisborough Railway (1858)
    • Middlesbrough and Redcar Railway (1858)
    • Wear Valley Railway (1858)
      • Bishop Auckland and Weardale Railway (1847)
    • Eden Valley Railway (1862)
    • Frosterley and Stanhope Railway (1862)
    • South Durham and Lancashire Union Railway (1862)

1865

  • Cleveland Railway
  • West Hartlepool Harbour and Railway
    • Clarence Railway (1853)
    • Stockton and Hartlepool Railway (1853)

1866

  • Hull and Hornsea Railway

1870

  • West Durham Railway

1872

  • Hull and Selby Railway

1874

  • Blyth and Tyne Railway

1876

  • Hexham and Allendale Railway
  • Leeds, Castleford and Pontefract Junction Railway

1882

  • Tees Valley Railway

1883

  • Hylton, Southwick and Monkwearmouth Railway
  • Scotswood, Newburn and Wylam Railway

1889

  • Whitby, Redcar and Middlesbrough Union Railway

1893

  • Wear Valley Extension Railway

1898

  • Scarborough & Whitby Railway

1900

  • Cawood, Wistow and Selby Light Railway

1914

  • Scarborough, Bridlington and West Riding Junction Railway

1922

  • Hull and Barnsley Railway

Dock Companies

1853

  • Hartlepool West Harbour and Dock

1857

  • Hartlepool Dock and Railway

1893

  • Hull Dock Company

Principal stations

Having inherited the country's first ever great barrel-vault roofed station, Newcastle Central, from its constituent the York Newcastle & Berwick railway, the NER during the next half century built a finer set of grand principal stations than any other British railway company, with examples at Alnwick, North Shields, Gateshead East, Sunderland, Stockton, Middlesbrough, Darlington Bank Top, York and Hull Paragon; the rebuilding and enlargement of the last-named resulting in the last of the type in the country. The four largest, at Newcastle, Darlington, York and Hull survive in transport use. Alnwick is still extant but in non-transport use since 1991 as a second-hand book warehouse, the others having been demolished during the 1950s/60s state-owned railway era, two (Sunderland and Middlesbrough) following Second World War blitz damage.

  • York station (York) was the hub of the system, and the headquarters of the line was located here. The basis for the present station was opened on 25 June 1877. Until the advent of modern signalling, the 295-lever box was the largest manually worked signal box in Britain.
  • Newcastle station (Newcastle), opened on 29 August 1850, became the largest on the NER.

Other principal stations were located at Sunderland, Darlington and Hull. The station at Leeds was a joint undertaking with the London and North Western Railway.

Architects

The NER was the first railway company in the world to appoint a full-time salaried architect to work with its chief engineer in constructing railway facilities. Some of the men appointed were based in, or active in, Darlington.

  • George Townsend Andrews was the first architect associated with the North Eastern Railway. He designed the first permanent station at York, along with others on the NER route. He also designed the Assembly Rooms in York.
  • Thomas Prosser held the position from 1854 to 1874. He worked in Newcastle.
  • Benjamin Burleigh, served for two years, dying in office.
  • William Peachey, was based in Darlington, and served for two years. Peachey had been architect to the Stockton and Darlington Railway, and when this merged into the NER in 1863, he was made Darlington section architect. Most of his work was to extend and improve railway buildings. Elsewhere he built the Zetland Hotel at Saltburn (1861–63), and the Royal Station Hotel at York (1877–82). He also practised privately, designing a few nonconformist chapels, including Grange Road Baptist Chapel in Darlington, 1870–1.
  • William Bell worked for the NER for 50 years; he was chief architect for 37 years, between 1877 and 1914. His major contributions were as NER architect. Bank Top (1884–87) is one of the best examples of his station designs, for which he developed a standard system of roof building. He added various elements to the North Road Engineering works between 1884 and 1910. With Horace Field, he designed the splendid Headquarters Offices in York in 1904. He also designed the offices of the Mechanical Engineer's Department in Brinkburn Road in 1912, showing that he could adapt his style to the new influences of the Queen Anne revival.
  • Arthur Pollard and Stephen Wilkinson each briefly filled the position of chief architect. The merger of the company into the LNER resulted in abolition of the department.

Professional design was carried through to small fixtures and fittings, such as platform seating, for which the NER adopted distinctive 'coiled snake' bench-ends. Cast-iron footbridges were also produced to a distinctive design. The NER's legacy continued to influence the systematic approach to design adopted by the grouped LNER.

Senior staff

Chairmen

  • James Pulleine (1854–55)
  • Harry Stephen Thompson (1855–74)
  • George Leeman (1874–80)
  • John Dent Dent (1880–94)
  • Sir Joseph Whitwell Pease, Bart (1895–1902)
  • Viscount Ridley (1902–04)
  • Sir Edward Grey, Bart (1904–05)
  • John Lloyd Wharton (1906–12)
  • Baron Knaresborough (1912–22)

Directors

A director of the NER from 1864, and deputy chairman from 1895 until his death in 1904, was ironmaster and industrial chemist Sir Lowthian Bell. His son Sir Hugh Bell was also a director; he had a private platform on the line between Middlesbrough and Redcar at the bottom of the garden of his house Red Barns. Gertrude Bell's biographer, Georgina Howell, recounts a story about the Bells and the NER:

Among the other famous directors of the NER were George Leeman (director 1854–82, Chairman 1874–80); Henry Pease (director 1861–1881); Sir Joseph Whitwell Pease, Bart. (director 1863–1902, Chairman 1895–1902); John Dent Dent (director 1879–94, Chairman 1880–94); Matthew White Ridley, 1st Viscount Ridley (director 1881–1904, Chairman 1902–04); Sir Edward Grey, Bart (director 1885–1911, Chairman 1904–05); George Gibb (solicitor 1882–1891, general manager 1891–1906, director 1906–1910); and Henry Tennant (director 1891–1910).

Electrified lines

NorthEasternRailwayNo1-Locomotion-Shildon-April2008.JPG|thumb|NER No.1, an electric shunting locomotive introduced to the Quayside electrification, now at Locomotion museum, Shildon

The NER was one of the first main line rail companies in Britain to adopt electric traction, the Lancashire and Yorkshire Railway having opened its first electrified line between Liverpool and Southport one week earlier.

Tyneside

The Tyneside scheme commenced public operation on 29 March 1904. The scheme was known as Tyneside Electrics and totalled about 30 miles:

  • Newcastle Central via Wallsend, Whitley Bay, Gosforth and New Bridge Street (the Newcastle terminus of the former Blyth & Tyne Railway)
  • Heaton to Benton or Backworth via the East Coast Main Line
  • Riverside Branch from Byker to Percy Main
  • Newcastle Quayside Branch

The latter was electrically operated from June 1905 and was a 3/4 mile freight-only line from Trafalgar Yard, Manors to Newcastle Quayside Yard.

Further extensions taking the electrification to South Shields were carried out in March 1938 by the London and North Eastern Railway

The lines were originally electrified at 600V DC using the 3rd rail system, although after 1934 the operating voltage was raised to 630V DC. On the Newcastle Quayside Branch overhead line of tramway type was used for upper and lower yards with 3rd rail in the interconnecting tunnels between the yards.

Newport-Shildon

The Newport-Shildon line was electrified on the 1,500 volt dc overhead system between 1914 and 1916 and the locomotives which later became British Rail Class EF1 were used on this section.

Traffic

The NER carried a larger tonnage of mineral and coal traffic than any other principal railway.

The NER was a partner (with the North British and the Great Northern Railway) in the East Coast Joint Stock operation from 1860.

Accidents and incidents

  • On 6 December 1870, a collision between two trains at Brockley Whins, County Durham killed five people. The accident was caused by a lack of interlocking between points and signals.
  • In 1870, a freight train overran signals and collided with a London and North Western Railway passenger train at St. Nicholas Crossing, Carlisle, Cumberland. Five people were killed. The driver of the freight was intoxicated.
  • On 27 July 1875, the boiler of a locomotive exploded at Holbeck station, Leeds, Yorkshire.
  • On 25 March 1877, an express passenger train was derailed at Morpeth, Northumberland due to excessive speed on a curve. Five people were killed and seventeen were injured.
  • In 1877,the boiler of a locomotive exploded at Alne, Yorkshire.
  • On 10 August 1880, an express passenger train hauled by a NER locomotive was derailed on the North British Railway near Berwick upon Tweed, Northumberland due to defective track. Three people were killed.
  • On 25 October 1887, a freight train overran signals at Chevington, Northumberland and was in a head-on collision with a locomotive that was shunting. That locomotive and its wagons were pushed into a stationary passenger train.
  • In 1890, a freight train was derailed on the Redheugh Incline, Gateshead, County Durham.
  • On 2 November 1892, an express passenger train was in a rear-end collision with a freight train at Thirsk, Yorkshire due to errors by the guard of the freight train and a signalman. Ten people were killed and 43 were injured.
  • On 4 November 1894, a sleeping car train overran signals and collided with a freight train that was being shunted at Castle Hills, Yorkshire. One person was killed.
  • On 5 November 1900, a freight train ran away and was derailed by trap points at Lingdale Junction, Yorkshire.
  • On 4 July 1901, a freight train was unable to stop and ran off the end of a siding at Harperley, County Durham.
  • On 27 June 1905, a freight train was derailed at Wallsend, Northumberland.
  • On 24 November 1906, a passenger train overran signals and ran into the rear of a freight train at Ulleskelf, Yorkshire.
  • On 26 March 1907, a passenger train was derailed by heat buckled track at Felling, County Durham. Two people were killed and six were seriously injured. The accident could have been prevented as the signalman had been warned of the buckle by a member of the public but refused to heed the warning.
  • On 28 August 1907, a freight train overran signals and was derailed at Goswick, Northumberland. Two people were killed and one was seriously injured.
  • On 8 October 1908, an overloaded freight train ran away and crashed into goods wagons at Masham, Yorkshire.
  • On 29 May 1909, a freight train was derailed at Skinningrove, Yorkshire due to subsidence of the trackbed.
  • On 8 August 1909, a freight train was derailed at Hartley, Cumberland due to the track buckling in the heat of the sun.
  • On 15 November 1910, an express freight train overran signals and was in a rear-end collision with a freight train at Darlington, County Durham.
  • On 13 December 1911, a freight train ran away between Rockingham South Signal Box and Wombwell station, Yorkshire, It passed several signals at danger before colliding with wagons being shunted at Darfield Main Signal Box. Both crew of the locomotive were killed.
  • On 15 December 1911, a freight train was derailed at Lartington, Yorkshire due to the driver braking too sharply. During recovery operations, a rail-mounted crane overturned.
  • On 3 March 1916, an empty stock train was in a rear-end collision with an electric multiple unit at Manors East station, Newcastle upon Tyne, Northumberland. Forty-nine people were injured.
  • On 15 September 1917, a set of carriages ran away from Catterick Camp and was derailed. Three people were killed.
  • On 11 August 1918, the carriage sheds at Heaton, Newcastle were destroyed by fire, as were 34 carriages forming a number of NER electric units.
  • On 14 February 1920, two freight trains were involved in a head-on collision at Skelton, Yorkshire.
  • On 31 March 1920, a passenger train was derailed at York station.
  • On 22 October 1921, Petrol Inspection Saloon No. 3768 was destroyed by fire at York station.

Docks

The company owned the following docks:

  • The Hull Docks Company (Queens dock, Humber Dock, Railway Dock, Victoria dock, Albert dock, William Wright Dock, St Andrews dock): acquired 1893. Dealt with a large variety of cargoes, including grain, seed, wood and fruit
    • King George Dock (opened 1914) – jointly operated with the Hull and Barnsley Railway.
  • Hartlepool Docks: acquired 1865. A large timber trade
  • Tyne Dock: opened by NER in 1859. Timber and coal exports
  • Middlesbrough Dock: Opened in 1842. Iron

The NER also owned coal-shipping staithes at Blyth and Dunston-on-Tyne. Its steamboats ran between Hull and Antwerp and other places on the Continent.

Locomotives

A comprehensive list of NER locomotives: Locomotives of the North Eastern Railway.

Coaching stock

The NER originally operated with short four and six wheeled coaches with a fixed wheelbase. From these were developed the standard six-wheeled, low elliptical roofed coaches which were built in their thousands around the 1880s. One variety alone, the diagram 15, five compartment, full 3rd class, numbered around a thousand. The NER started building bogie stock for general service use in 1894, clerestories for general use with a variation built for use on the tightly curved line from Malton to Whitby. There were also a series of low ark roofed bogie coaches (with birdcage brakes) for use on the coast line north of Scarborough.

Coach manufacture moved to high arched roof vehicles but with substantially the same body design in the early 1900s.

The NER had limited need for vestibuled coaches but from 1900 built a series of vestibuled, corridor coaches with British Standard gangways, for their longer distance services. The company introduced clerestory corridor dining trains on services between London and Edinburgh. The initial trial was run between York and Newcastle in 1 hour 30 minutes on 30 July 1900. The new train consisted of eight coaches and was long (excluding the engine), and had seating for 50 first-class and 211 third-class passengers. At the same time they built (in conjunction with their partners) similar coaches for the East Coast Joint Stock (GNR/NER/NBR) and the Great Northern and North Eastern Joint Stock.

All NER coach building was concentrated at their York Carriage Works, which went on to be the main LNER carriage works after grouping.

With the introduction of the standard 6-wheeled coaches NER carriage livery was standardised as 'deep crimson' (a deeper colour with more blue in it than that used by the Midland Railway), lined with cream edged on both sides with a thin vermillion line. For a time the cream was replaced with gold leaf. Lettering ('N.E.R.' or when there was sufficient space 'North Eastern Railway' in full, together with 'First', 'Third' and 'Luggage Compt.' on the appropriate door) and numbering; was in strongly serifed characters, blocked and shaded to give a 3D effect.

The NER's bogie coach building program was such that, almost unique amongst pre-grouping railways, they had sufficient bogie coaches to cover normal service trains; six wheel coaches were reserved for strengthening and excursion trains.

Text from Wikipedia, available under the Creative Commons Attribution-ShareAlike License (accessed: 09/12/2017).
Visit the page: North Eastern Railway (United Kingdom) for references and further details. You can contribute to this article on Wikipedia.
Railway Newcastle and North Shields Railway Whitley Bay Station William Bell (1844 - 1919) Shildon Railway Institute 1923 Middlesbrough Railway Station Darlington Railway Station Alnwick to Cornhill Railway Tweedmouth to Kelso Branch Line Croxdale Viaduct Monkwearmouth Railway Bridge Blyth and Tyne Railway Royal Station Hotel Belmont Viaduct King Edward VII Bridge Irving House, 19 Westgate Road Former Lintz Green Railway Station Edlingham Railway Viaduct 1854 Newton Cap Viaduct Dunston Staiths Crimdon Dene Railway Viaduct 1948
from https://archive.org/details/n…
The North Eastern Railway : its rise and development (William Weaver Tomlinson, 1914)
- Digitised version of William Tomlinson's 1914 book available in a number of formats and for reading online. The North Eastern Railway : its rise and development. by William Weaver Tomlinson, …

Added by
Simon Cotterill
from Flickr (flickr)
Route map of the South Tynedale branch Haltwhistle to Alston Formerly a North Eastern Railway standard gauge branch, it now carries the South Tynedale Railway narrow gauge.

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
051398:No Title available

Pinned by Simon Cotterill
from Flickr (flickr)
1955 British Railways Eastern Region timetable 56 Alston Haltwhistle

Pinned by Simon Cotterill
Dunston Staiths
  Co-Curate Page
Dunston Staiths
- Overview About Dunston Staiths Timeline Map Street View "Dunston Staiths on the River Tyne is believed to be the largest timber structure in Europe, at its height, 5.5m tonnes of …
from Beamish Museum (youtube)
The Nonagenarian - L.N.E.R Y7 No.985

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
051410:No Title available

Pinned by Simon Cotterill
from Newcastle libraries (flickr)
051417:Locomotive Gateshead unknown c1907

Pinned by Simon Cotterill
from Flickr (flickr)
You Are Here

Pinned by Simon Cotterill
from Flickr (flickr)
North Eastern railway tile map

Pinned by Simon Cotterill
from Flickr (flickr)

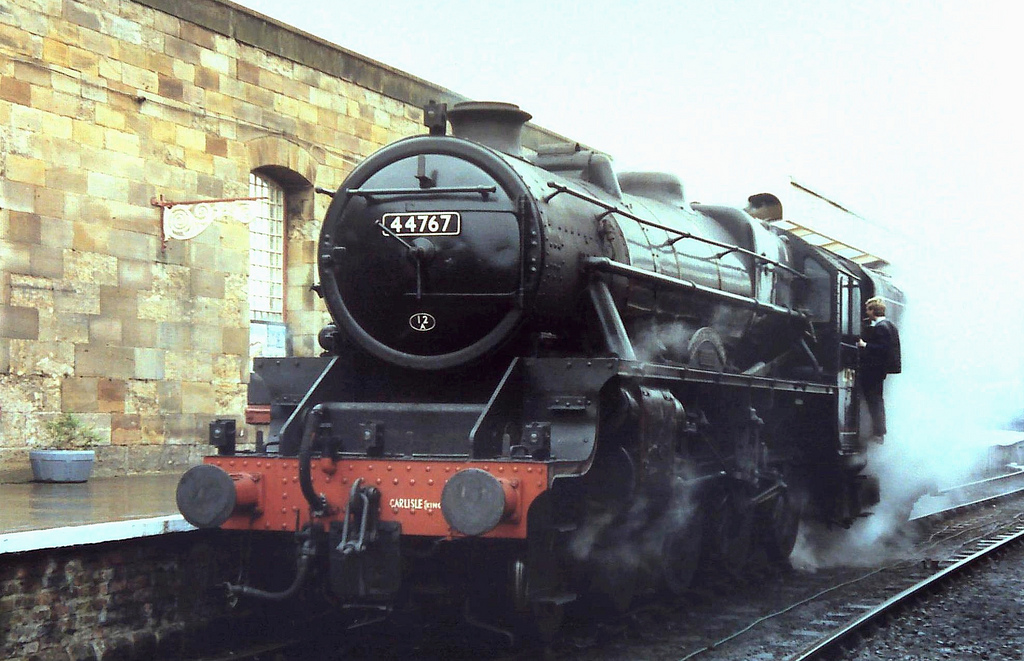

8X-024 Black Five 4-6-0 No. 44767 'George Stephenson' runs round its train at Pickering

Pinned by Simon Cotterill
from Flickr (flickr)
no.1744 (BR No. 69523) GNR Class N2

Pinned by Simon Cotterill
from Flickr (flickr)
Morpeth Train Station - North Eastern Railway Sign

Pinned by Simon Cotterill
from Geograph (geograph)
NER monogram on the Royal Station Hotel

Pinned by Simon Cotterill
Whitley Bay Station
  Co-Curate Page
Whitley Bay Station
- Overview Histoty & Further Info. Map Street View A railway station at Whitley Bay was opened on the 3rd July 1882 for the North Eastern Railway as part of its …
William Bell (1844 - 1919)
  Co-Curate Page
William Bell (1844 - 1919)
- William Bell, born in York on 11th February 1844, was Chief Architect for North Eastern Railway (NER) from 1877 to 1914. Under Bell some of the stations built/upgraded for NER …
from Newcastle libraries (flickr)
012304:Snow Plough Gateshead 1909

Pinned by Simon Cotterill
Alnwick to Cornhill Railway
  Co-Curate Page
Alnwick to Cornhill Railway
- Overview About the Cornhill Branch The Alnwick to Coldstream (Cornhill) railway, was opened in 1887 by the North Eastern Railway to link it's Kelso line to its Alnwick Branch. The …
Monkwearmouth Railway Bridge
  Co-Curate Page
Monkwearmouth Railway Bridge
- Overview About Monkwearmouth Railway Bridge Map Street View   Monkwearmouth Railway Bridge (officially Monkwearmouth Bridge, also called Wearmouth Railway Bridge or Sunderland Railway Bridge) is a railway bridge built in …
Darlington Railway Station
  Co-Curate Page
Darlington Railway Station
- Overview About Darlington Railway Station Map Street View   Darlington railway station is on the East Coast Main Line in the United Kingdom, serving the town of Darlington, County Durham. …
Crimdon Dene Railway Viaduct
  Co-Curate Page
Crimdon Dene Railway Viaduct
- Overview Map Street View The viaduct over Crimdon Dene was built in 1905 to carry the North Eastern Railway. The viaduct is located close to the mouth of Crimdon Dene, …
Blyth and Tyne Railway
  Co-Curate Page
Blyth and Tyne Railway
- Overview About the Blyth & Tyne Railway The Blyth & Tyne Railway was formed in 1853 to amalgamate several private railways and waggonways that had developed to carry coal from …
Shildon Railway Institute
  Co-Curate Page
Shildon Railway Institute
- Overview Map Street Shildon Railway Institute is a membership club located on Redworth Road in Shildon. It was built in 1911 by the North Eastern Railway and replaced an earlier Railway …
from Flickr (flickr)
Image from page 26 of "Electric railway journal" (1908)

Pinned by Pat Thomson
Belmont Viaduct
  Co-Curate Page
Belmont Viaduct
- Overview Map Belmont Viaduct is a railway viaduct over the River Wear, built in 1856 for the Auckland branch line of the North Eastern Railway. It is located north of the …
Irving House, 19 Westgate Road
  Co-Curate Page
Irving House, 19 Westgate Road
- Overview Map Street View Irving House is located on Westgate Road in Newcastlle. It was originally built in 1910 by William Bell, as offices for the North Eastern Railway Company. …

Comments

Add a comment or share a memory.

Login to add a comment. Sign-up if you don't already have an account.



ABOUT US

Co-Curate is a project which brings together online collections, museums, universities, schools and community groups to make and re-make stories and images from North East England and Cumbria. Co-Curate is a trans-disciplinary project that will open up 'official' museum and 'un-officia'l co-created community-based collections and archives through innovative collaborative approaches using social media and open archives/data.

LATEST SHARED RESOURCES
