Tyne Pedestrian and Cyclist Tunnels


The Tyne Pedestrian and Cyclist Tunnels were opened to the people of Tyneside on 24th July 1951. These two purpose-built tunnels were designed to connect Howdon in North Tyneside with Jarrow in South Tyneside under the river Tyne. At a cost of £833,000, these 900 ft (274.5 m) long tunnels, which run parallel to each other, have been connecting the communities on the North and South banks of the river Tyne for [over] 60 years." (Source: Tyne and Wear Archives and Museums)

Tyne Cyclist and Pedestrian Tunnel was Britain's first purpose-built cycling tunnel. It runs under the River Tyne between Howdon and Jarrow, and was opened in 1951, heralded as a contribution to the Festival of Britain. The original cost was £833,000 and the tunnel was used by 20,000 people a day.

It actually consists of two tunnels running in parallel, one for pedestrian use with a diameter, and a larger diameter tunnel for pedal cyclists. Both tunnels are in length, and lie below the river bed. The tunnels are over 60 years old and are Grade II listed buildings.

At each end, the tunnels are connected to surface buildings by two escalators and a lift. The Waygood-Otis escalators have 306 wooden steps each, and are the original models from 1951. At the time of construction, they were the highest single-rise escalators in the UK, with a vertical rise of and a length of . In 1992. escalators with a higher vertical rise of and in length were constructed at Angel station on the London Underground. The Tyne Tunnel escalators remain the longest wooden escalators in the world.

In a refitting phase the escalators and lift shafts were due to be upgraded by October 2010 to early 2011 at a cost of £500,000. A £6,000,000 refurbishment was due to take place in 2011.

20,000 people a month use the pedestrian tunnel.

In 2005, The SoundEx filmed a music video to their song Street Freak in the tunnel. The band were permitted to close the cyclist tunnel for two days and use it free of charge to bring the tunnel publicity.

In 2012, contractor GB Building Solutions of Balliol Business Park, Newcastle, was appointed to carry out the £4.9 million refurbishment which will include the replacement of two of the original four escalators with inclined lifts and the replacement of the tunnels’ ageing mechanical and electrical systems.

The two remaining escalators, which are original and of historical significance, will be opened up to public view and illuminated with feature lighting.

New lighting, CCTV, control and communications systems will also be installed, in addition to carrying out repairs to the tunnel structure itself and to the historic finishes within the tunnel such as the tiling and panelling. The concrete floor sections are also to be refurbished or replaced, which will greatly improve the surfaces for cyclists and pedestrians.

Text from Wikipedia, available under the Creative Commons Attribution-ShareAlike License (accessed: 03/08/2016).
Visit the page: Tyne Tunnel for references and further details. You can contribute to this article on Wikipedia.
from Flickr (flickr)

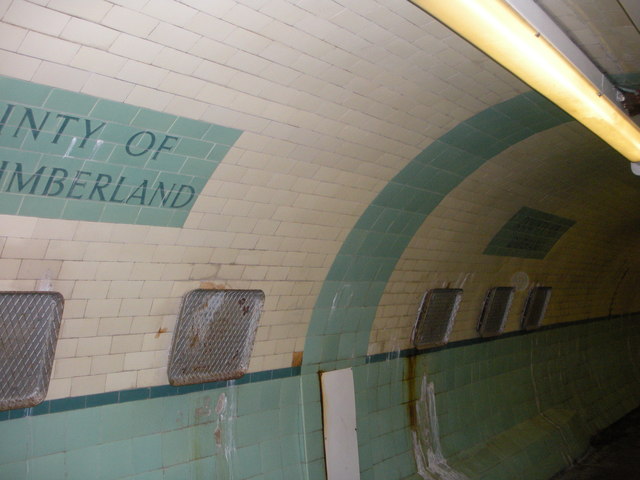

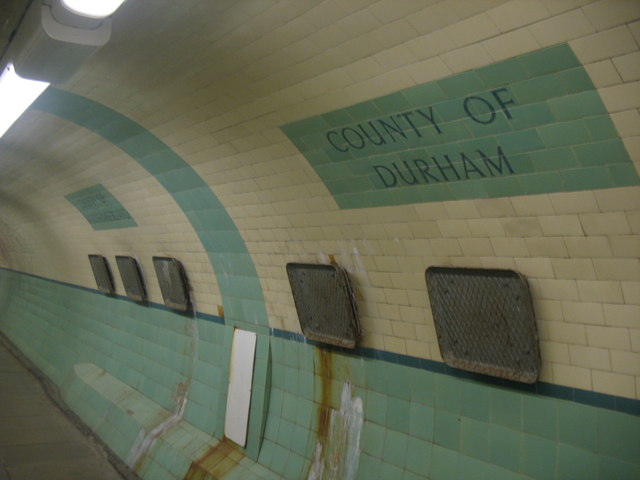

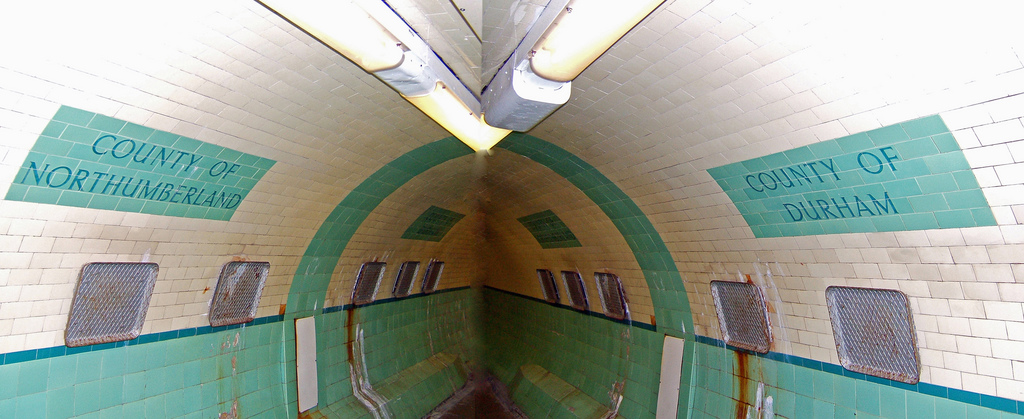

County boundary

Pinned by Simon Cotterill
from Flickr (flickr)

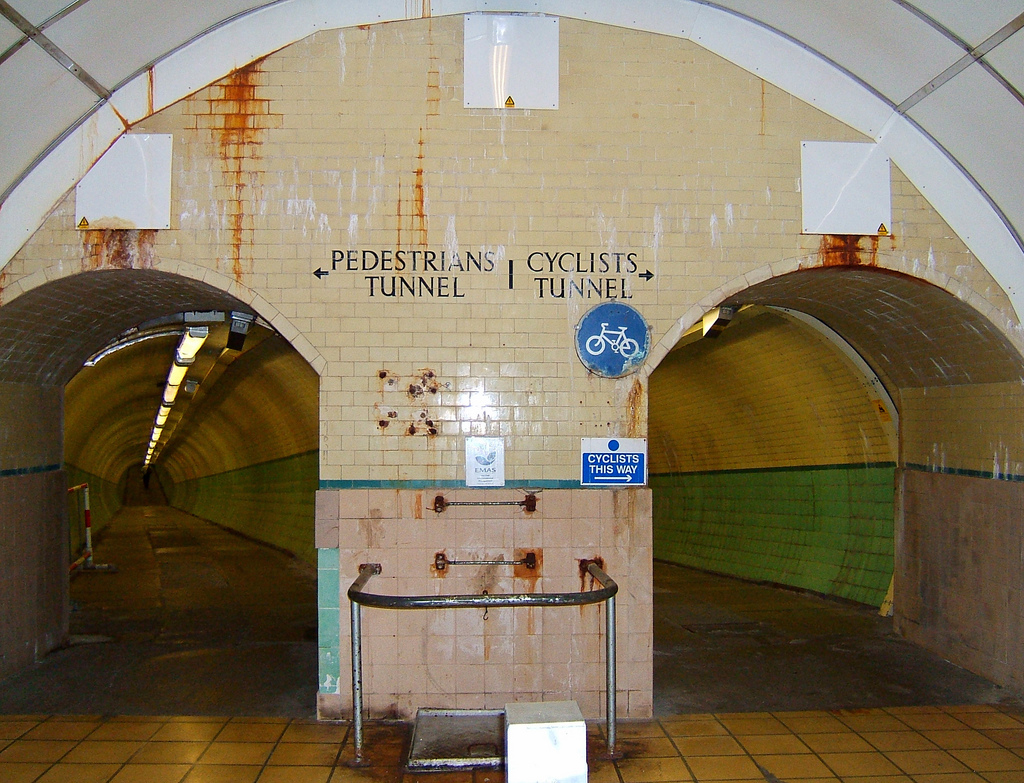

Twin tunnels

Pinned by Simon Cotterill
from Flickr (flickr)
Howdon up escalator

Pinned by Simon Cotterill
from Flickr (flickr)

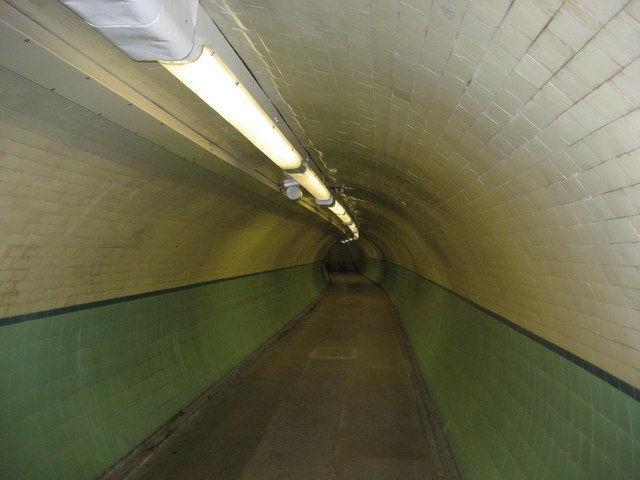

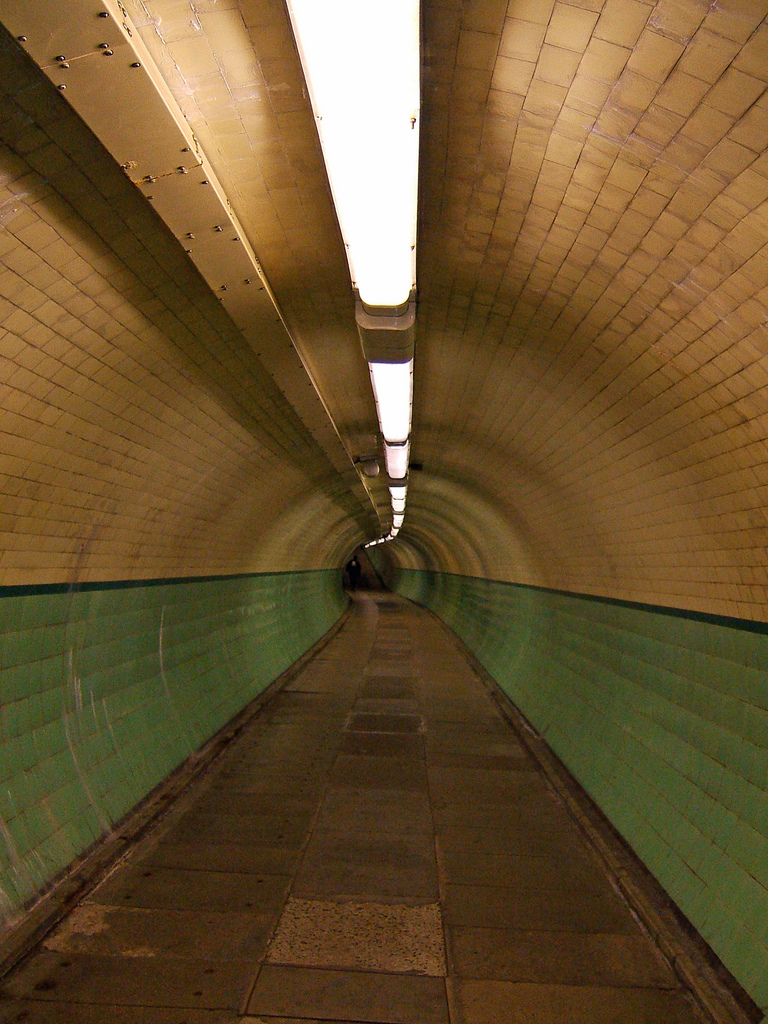

Pedestrian tunnel

Pinned by Simon Cotterill
from Flickr (flickr)

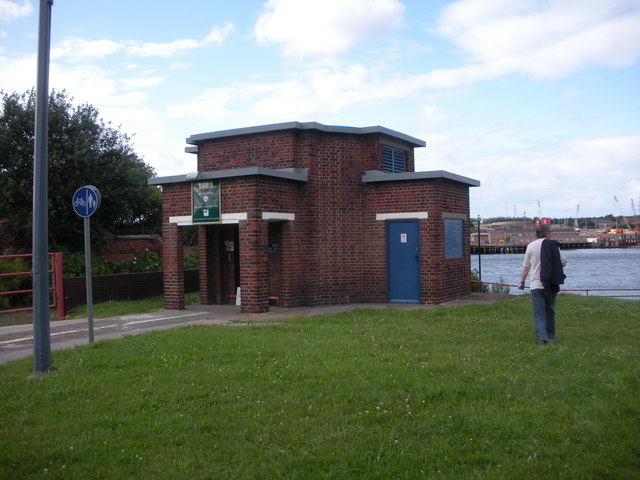

Jarrow entrance

Pinned by Simon Cotterill
from Flickr (flickr)

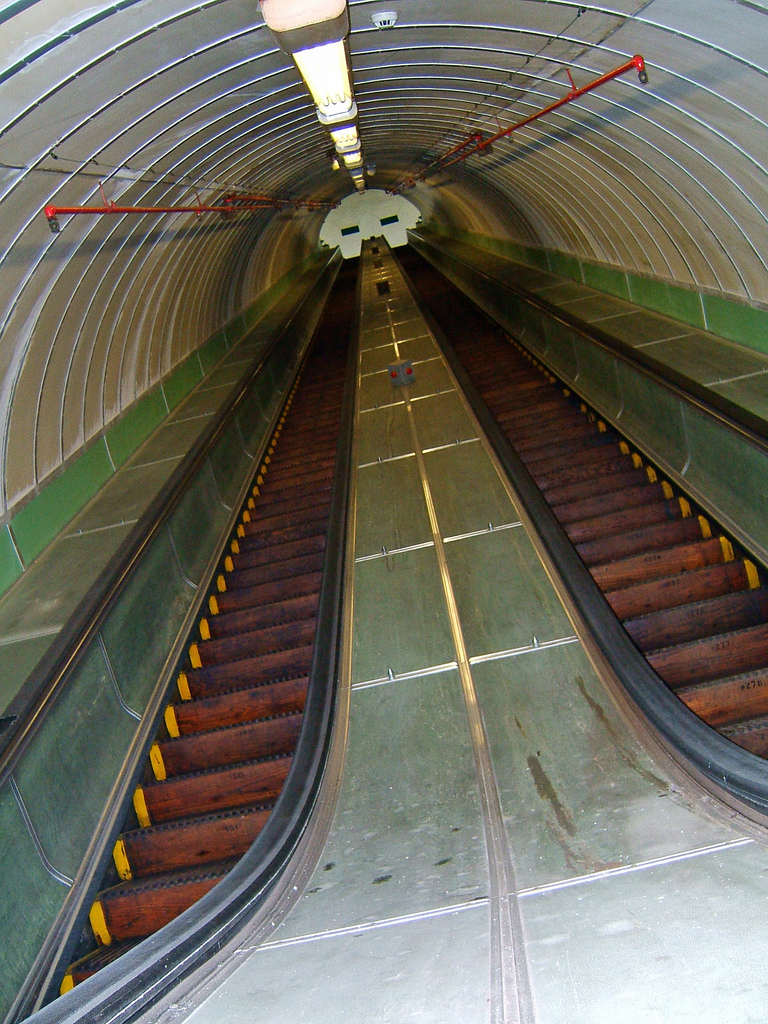

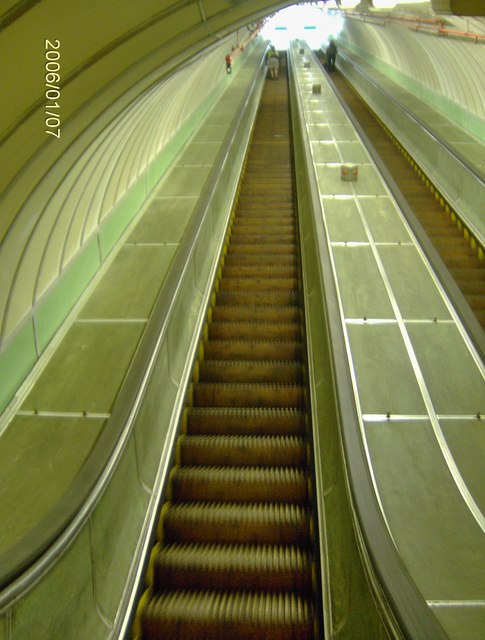

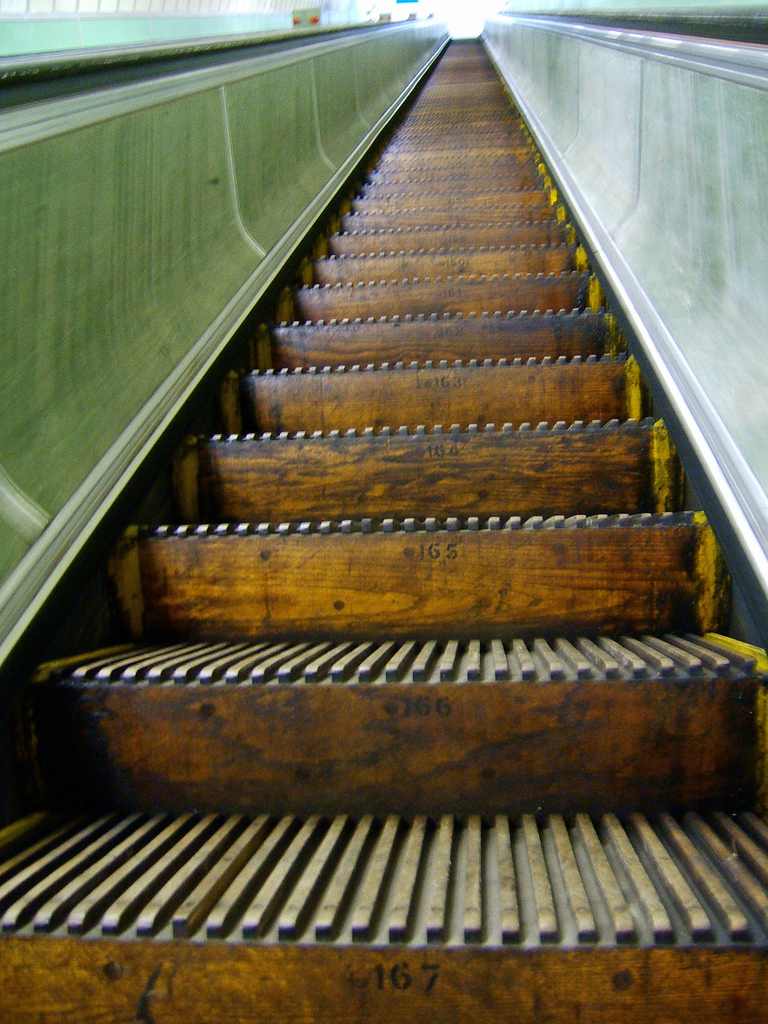

Looking up the escalator

Pinned by Simon Cotterill
from Flickr (flickr)
Tunnel Sculptures

Pinned by Simon Cotterill
from TWAM (flickr)

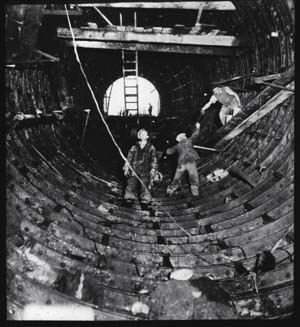

Interior of one of the lift shafts during construction

Pinned by Simon Cotterill
from TWAM (flickr)
Tyne Tunnels Aerial View

Pinned by Simon Cotterill
from TWAM (flickr)
Start of excavation of cyclist tunnel

Pinned by Simon Cotterill
from TWAM (flickr)

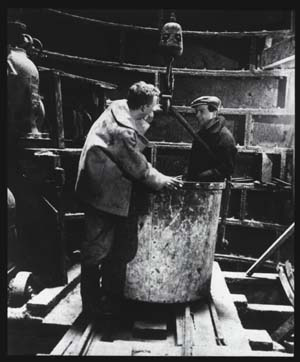

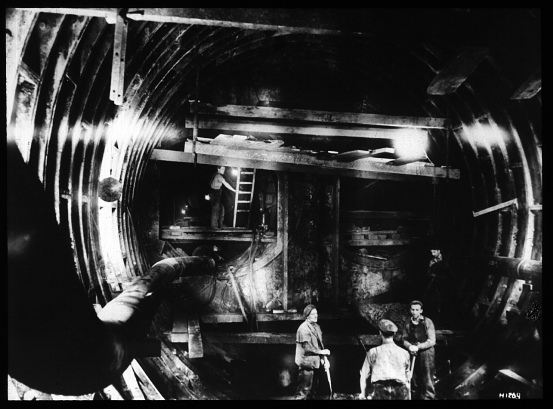

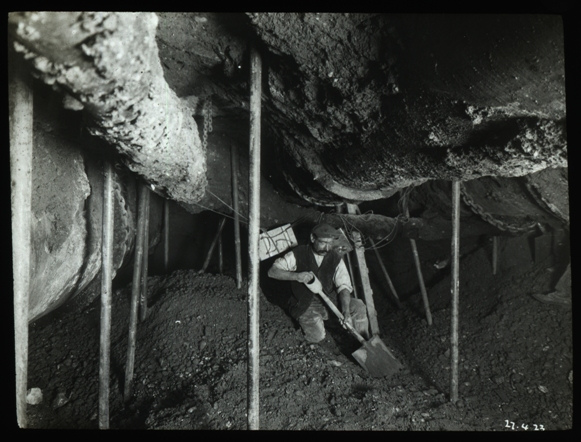

Interior of tunnel with construction gang at work

Pinned by Simon Cotterill
from TWAM (flickr)

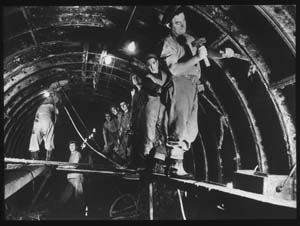

Mid point of tunnel with construction gang at work

Pinned by Simon Cotterill
from TWAM (flickr)
Linking the tunnels north - south

Pinned by Simon Cotterill
from TWAM (flickr)

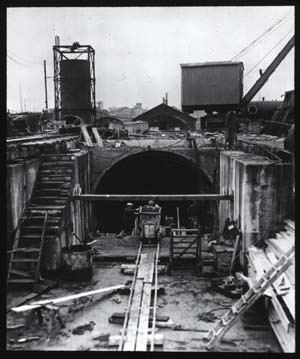

Jarrow site, tunnel entrance

Pinned by Simon Cotterill
from TWAM (flickr)
Mid point of the completed cyclist tunnel

Pinned by Simon Cotterill
from TWAM (flickr)
Preparation of the Tyne Tunnels

Pinned by Simon Cotterill
from TWAM (flickr)
View of The Tunnel Interior

Pinned by Simon Cotterill
from TWAM (flickr)

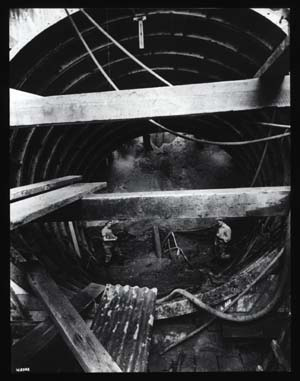

Excavation of Entrance Tunnel

Pinned by Simon Cotterill
from TWAM (flickr)
Excavation of entrance tunnel

Pinned by Simon Cotterill
from TWAM (flickr)
Construction of escalators, supports in place

Pinned by Simon Cotterill
from TWAM (flickr)

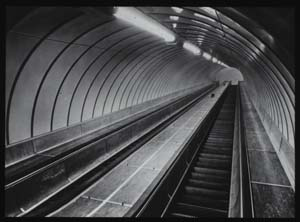

Completed escalators

Pinned by Simon Cotterill
from TWAM (flickr)
Escalator shaft under construction

Pinned by Simon Cotterill
from TWAM (flickr)
Completed escalators

Pinned by Simon Cotterill
from TWAM (flickr)

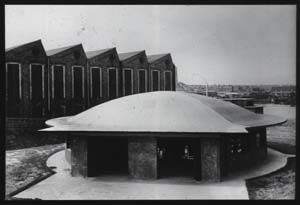

Jarrow side, entrance building completed

Pinned by Simon Cotterill
from TWAM (flickr)

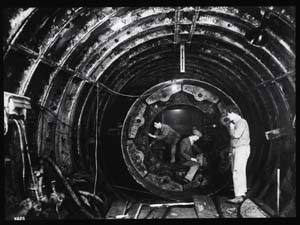

Shield chamber under construction

Pinned by Simon Cotterill
Jarrow
  Co-Curate Page
Jarrow
- Overview About Jarrow Map Street View   Jarrow is a town in north-east England, located on the River Tyne. Historically part of County Durham, in 1974 it became part of ...
Howdon
  Co-Curate Page
Howdon
- Overview About Howdon Map Street View   Howdon is a largely residential area in the eastern part of Wallsend, Tyne and Wear, England, much of the High Howdon area of ...
Cycling
  Co-Curate Page
Cycling
from http://www.tynepedestrianan...
Tyne Pedestrian and Cyclist Tunnels
- Official Website of the Tyne Pedestrian and Cyclist Tunnels

Added by
Simon Cotterill
Shields Ferry
  Co-Curate Page
Shields Ferry
- Overview About Shields Ferry Map There have been ferries to cross the River Tyne since the 14th century, particularly where the river is deep and wider towards the mouth of ...
from https://historicengland.org...
TYNE PEDESTRIAN AND CYCLIST TUNNEL - List Entry
- "....The Tyne Pedestrian and Cyclist Tunnels were constructed to provide access primarily for the large numbers of people who worked at the shipyards, lead and chemical works which lined the ...

Added by
Simon Cotterill
from http://twsitelines.info/SMR...
Tyne and Wear HER(1799): Tyne Pedestrian and Cyclist Tunnels
- "Authorised by Act of Parliament in 1946 to provide a crossing of the river some six miles downstream of the town of Newcastle. Initially two small tunnels were constructed, of ...

Added by
Simon Cotterill
from Geograph (geograph)
The Tyne Pedestrian and Cyclist Tunnels

Pinned by Peter Smith
from Geograph (geograph)
Information plaque, pedestrian and cyclist tyne tunnel

Pinned by Peter Smith
from Geograph (geograph)

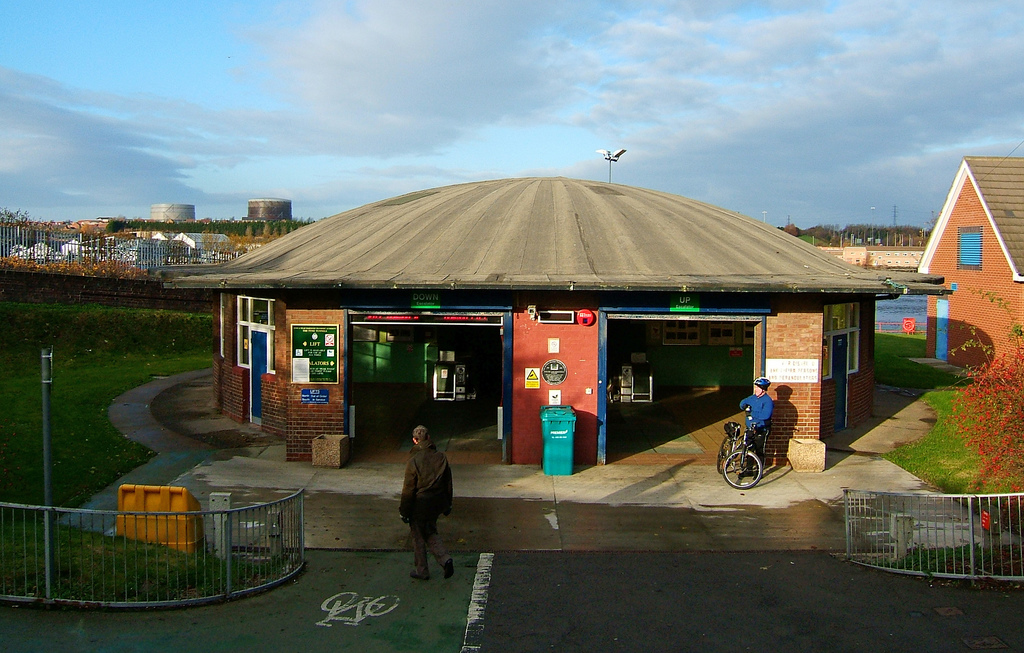

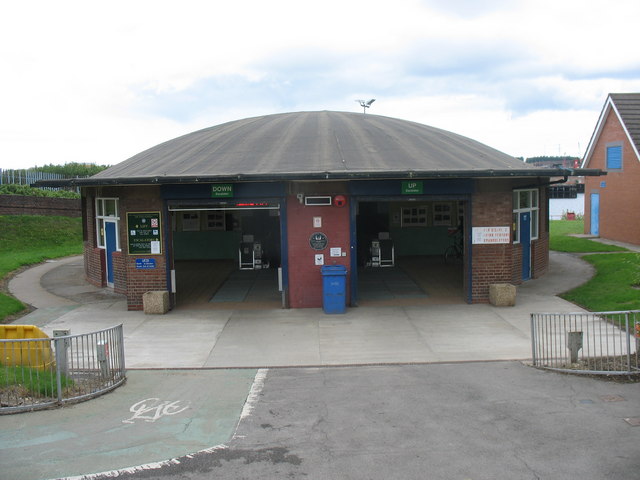

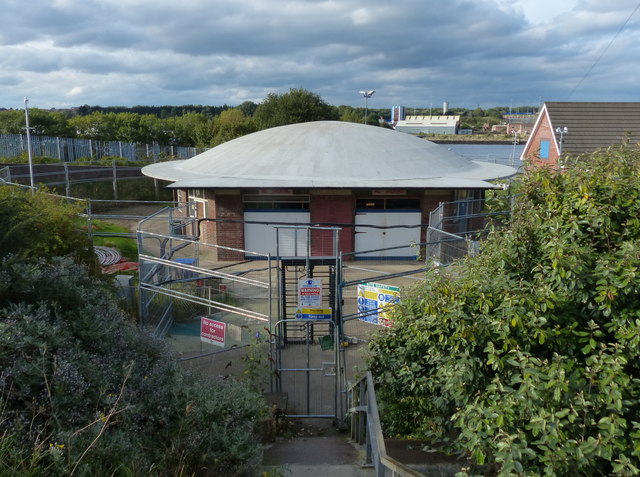

Lift building, South side of Tyne pedestrian tunnel
